Toyota PREMIO/ALLION — SPEAKER

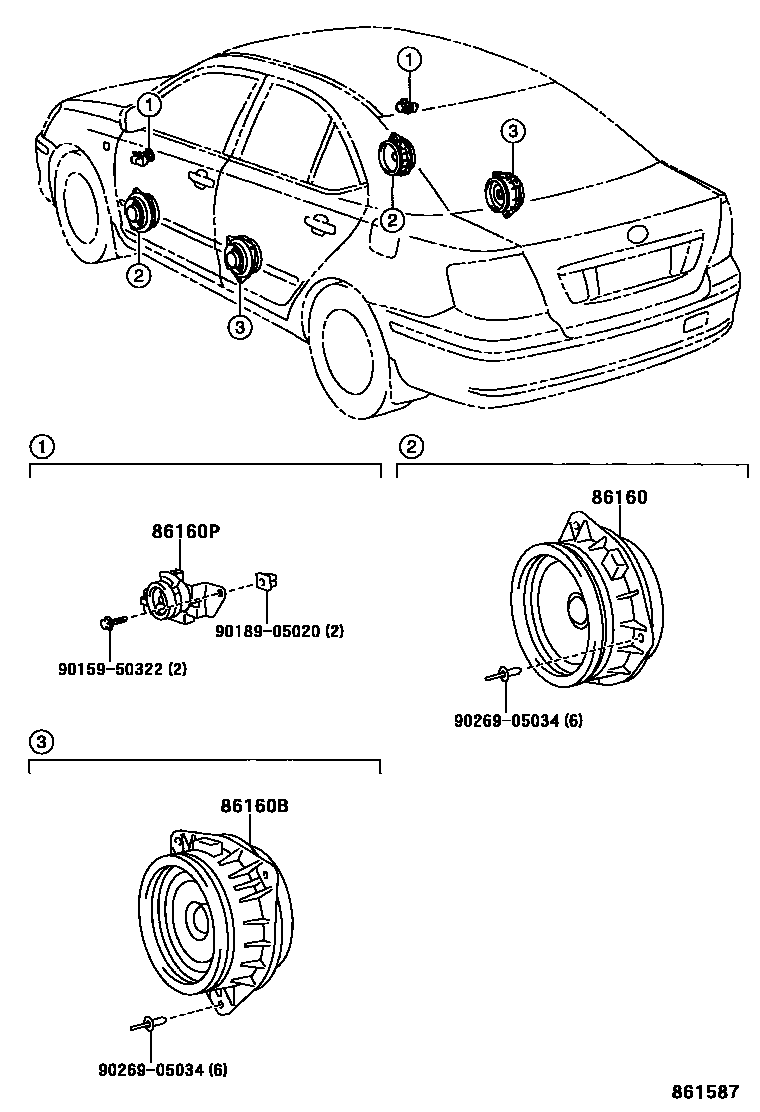

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-2B560×2i200112-200412

main86160-2B580×2i200412

86160BSPEAKER ASSY, REAR

main86160-2B570×2i200112-200412

main86160-52220×2i200412

86160PSPEAKER ASSY, FRONT NO.2

main86160-2B440i200112-200412

main86160-2B550i200412

9015950322

main90159-50322

9018905020

main90189-05020

9026905034

main90269-05034

6 parts on this diagram · 1 diagram in section

SPEAKER for Toyota PREMIO/ALLION

This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota PREMIO/ALLION. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
