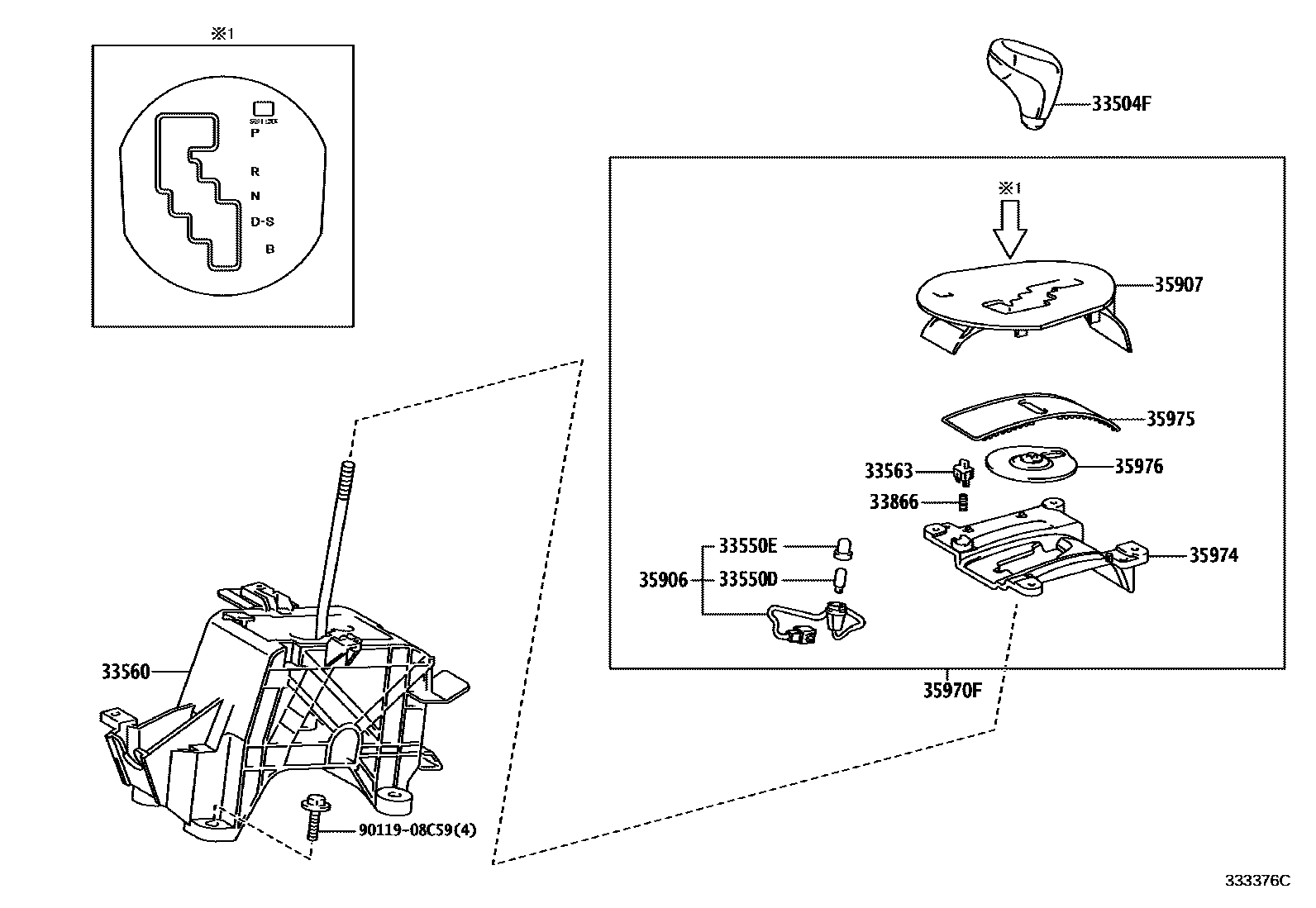

Toyota PREMIO/ALLION — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#
BLACK,TRIM1#; BLACK,TRIM1#,4#
ASH BROWN,TRIM4#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK/DK.GRAY,TRIM0#,2#
main33504-22200-A0iNZT260,ZRT260,265..CBU; ZRT260,265..PRM..CBU; ZRT261..ALN..CBU; ZRT261..PRM..CBU201212-201606
DK.GRAY,TRIM1#
main33504-22200-C0iNZT260,ZRT260,265..ALN..CBU; NZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU; ZRT261..ALN..CBU; ZRT261..PRM..CBU201212-201606
GREGE,TRIM45
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33866SPRING, SHIFT LOCK RELEASE
35906WIRE SUB-ASSY, INDICATOR LAMP
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35970FHOUSING ASSY, POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
9011908C59
main90119-08C59
13 parts on this diagram · 4 diagrams in section
SHIFT LEVER & RETAINER for Toyota PREMIO/ALLION
This section contains 25 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota PREMIO/ALLION. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, COVER, SHIFT LOCK RELEASE BUTTON, UNIT ASSY, SHIFT LOCK CONTROL.
