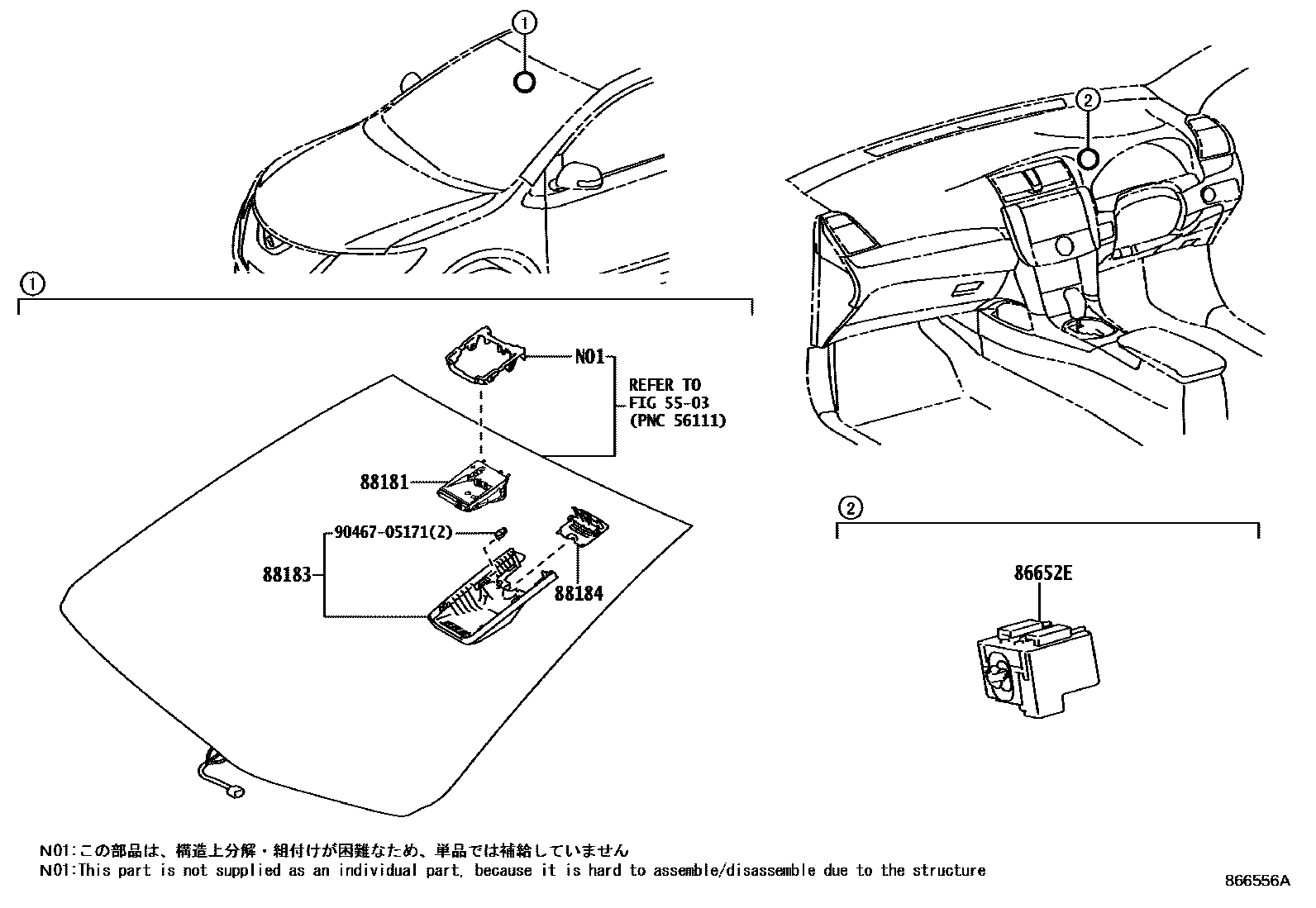

Toyota PREMIO/ALLION — PRE-COLLISION SYSTEM

5503

86652EBUZZER, PRE-COLLISION CITY

main86652-50010supersedes 86652-50010iZRT261..CBU201606-202009

88181SENSOR, PRE-COLLISION CITY

main88181-0W040iZRT261..CBU201606-201612

main88181-20010supersedes 88181-20010iZRT261..CBU201612-201801

88183COVER, PRE-COLLISION CITY

main88183-20030supersedes 88183-20030iZRT261..CBU201606-202009

88184COVER, PRE-COLLISION CITY, 2ND

main88184-20030supersedes 88184-20030iZRT261..CBU201606-202009

9046705171

main90467-05171

6 parts on this diagram · 1 diagram in section
