Toyota PREMIO/ALLION — PARTIAL ENGINE ASSEMBLY

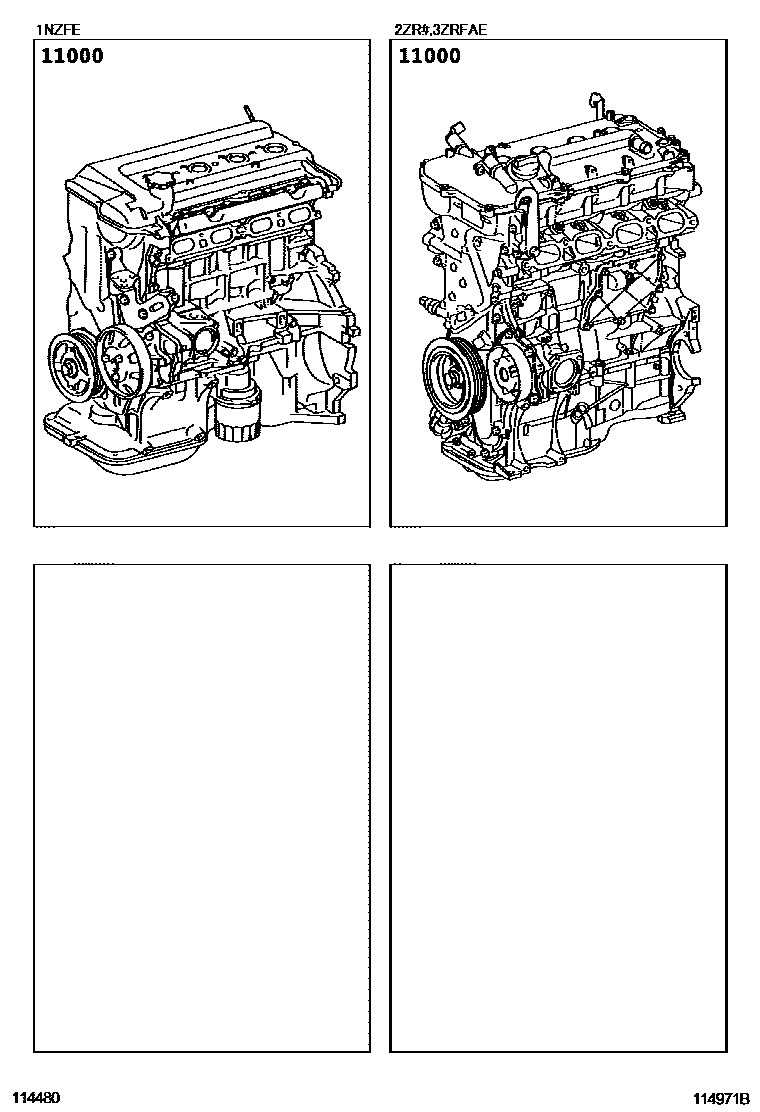

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21851i201201-201212
main19000-21C41i200705-201004
main19000-21D50i201212-201409
main19000-21D60i201606
main19000-37250i200705-201004
sub19000-37310
main19000-37360i200712-200806
sub90916-02679
main19000-37362i201004-201212
sub19000-37364
main19000-37480i201106-201212
main19000-37490i201106-201212
main19000-37620i201212-201505
main19000-37622i201606
main19000-37630i201212-201505
main19000-37632i201606
main19000-37640i201212-201505
main19000-37642i201606-202009

1 parts on this diagram · 1 diagram in section
