Toyota PREMIO/ALLION — PARTIAL ENGINE ASSEMBLY

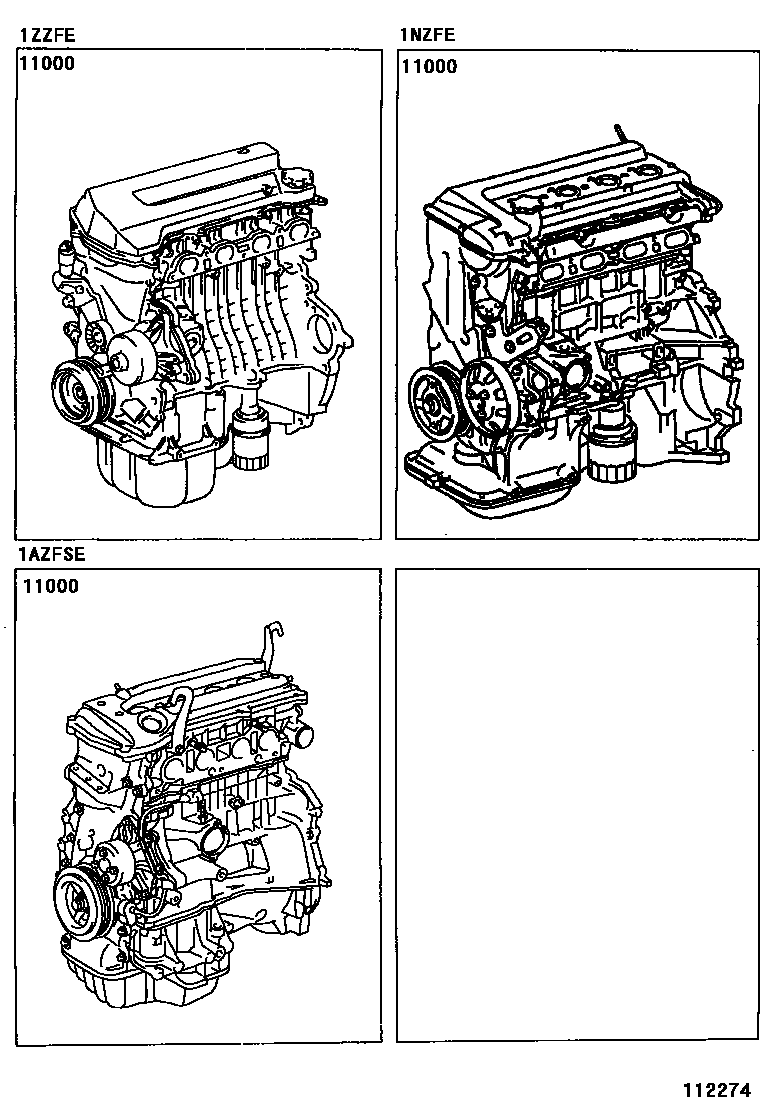

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21200i200112-200412
sub12204-21011
main19000-21631i200412-200705
main19000-22300i200311-200412
sub19000-22302
sub16258-28030
sub16268-22101
sub16268-22161
main19000-22301i200112-200311
main19000-22310i200112-200412
sub19000-22311
sub16258-28030
sub16268-22101
main19000-22730i200412-200705
sub19000-22302
sub16258-28030
sub16268-22161
main19000-22740i200412-200705
sub19000-22311
sub16258-28030
sub16268-22101
main19000-28150i200112-200311
sub19000-28151
main19000-28330i200412-200705
main19000-28610i200311-200412

1 parts on this diagram · 1 diagram in section
