Toyota PREMIO/ALLION — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12351BDAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510301
main90105-10301
9010510444
main90105-10444
9010510469
main90105-10469
9010510494
main90105-10494
9010510550
main90105-10550
9010510562
main90105-10562
9010512153
main90105-12153
9011610229
main90116-10229
9011910519
main90119-10519
9011910866
main90119-10866
9011910885
main90119-10885
9012608037
main90126-08037
9017810020
main90178-10020
9017810029
main90178-10029
9017908068
main90179-08068
9017908256
main90179-08256
9017910108
main90179-10108
9017910176
main90179-10176
9167180820
main91671-80820

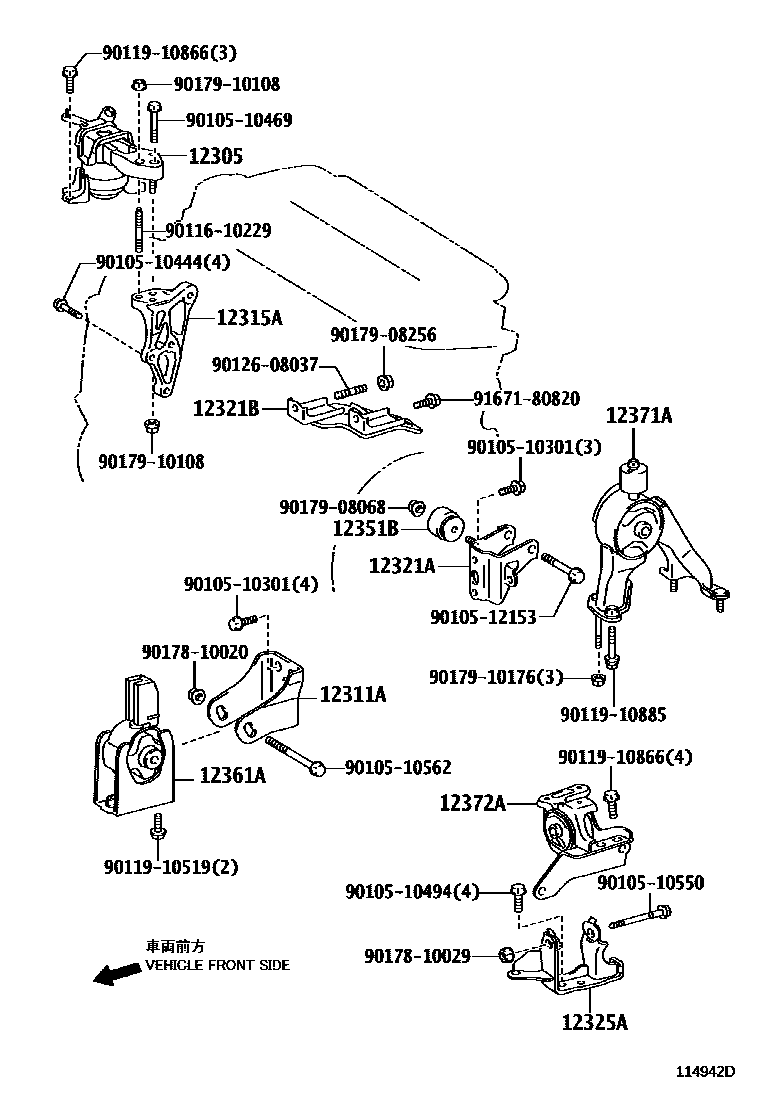

30 parts on this diagram · 4 diagrams in section
MOUNTING for Toyota PREMIO/ALLION
This section contains 48 genuine Toyota parts for the MOUNTING system of the Toyota PREMIO/ALLION. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), INSULATOR SUB-ASSY, DRIVE SHAFT HEAT.
