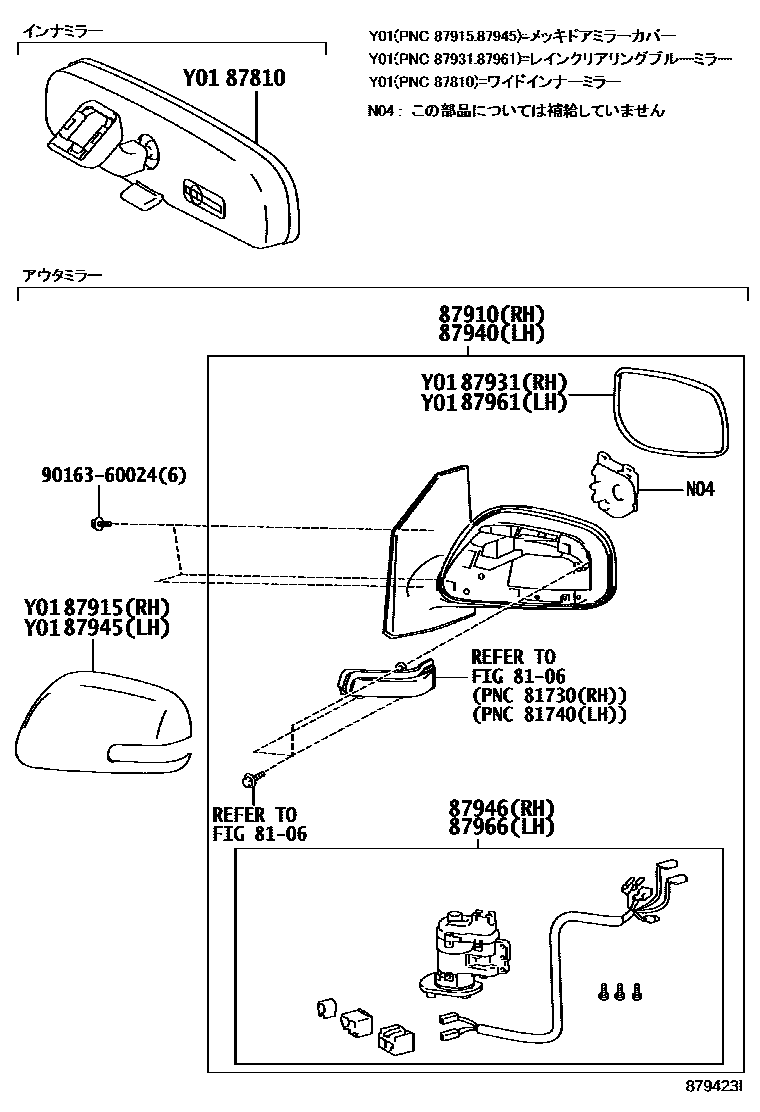

Toyota PREMIO/ALLION — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
GRAY ME.,1G2
BLACK MC.,209
RED M.M.,3R3
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
TURQUOISE M.M.,776
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
BLACK,202
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
CLEAR STREAM ME.,787
FROSTY GREEN MC.,781
ABYSS GRAY ME.,8V1
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
GRAY ME.,1G2
BLACK MC.,209
RED M.M.,3R3
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
TURQUOISE M.M.,776
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
BLACK,202
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
CLEAR STREAM ME.,787
FROSTY GREEN MC.,781
ABYSS GRAY ME.,8V1
87946RETRACTOR, OUTER MIRROR, RH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9016360024
main90163-60024
11 parts on this diagram · 2 diagrams in section
MIRROR for Toyota PREMIO/ALLION
This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota PREMIO/ALLION. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
