Toyota PREMIO/ALLION — MIRROR

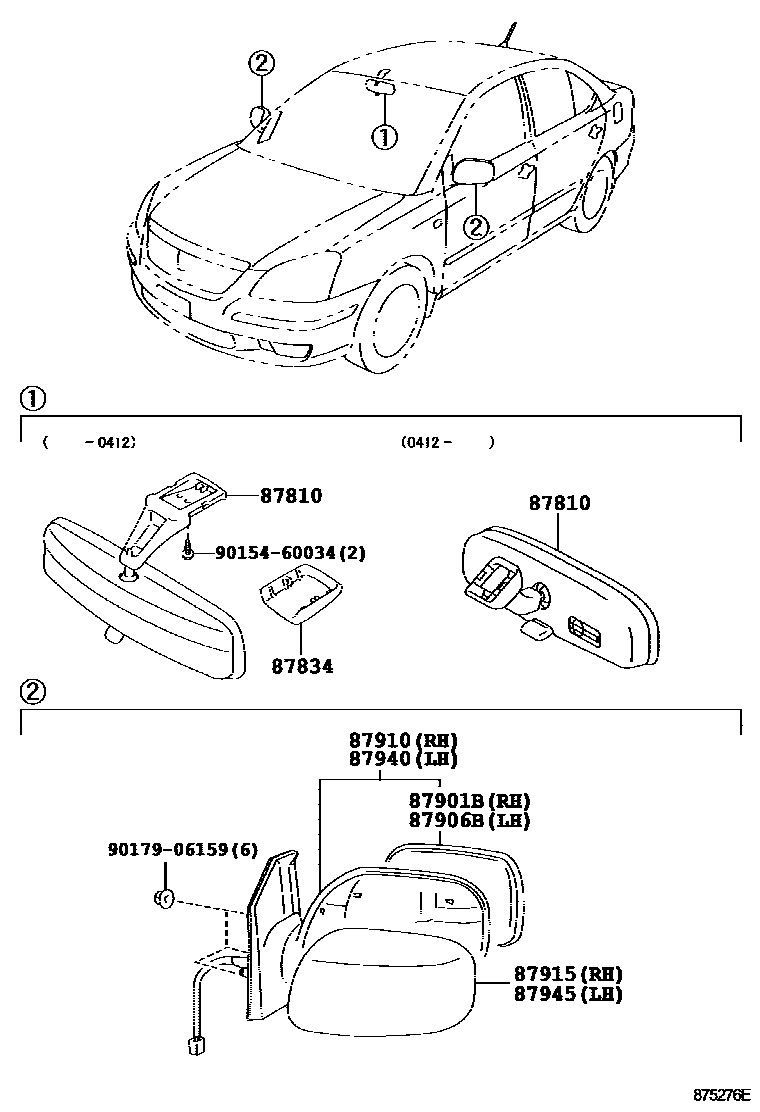

87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
LT.GRAY,TRIM1#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM0#
LT.GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SU. WHITE PM.,051
WHITE PEARL CS.,070
SILVER ME.,1C0
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3N8
BORDEAUX MC.,3P2
ROSE ME.,3Q0
BEIGE ME.,4P7
JADE GREEN M.M.,6S9
DK.BLUE M.M.,8P4
LT.BLUE ME.,8Q6
BLUE,8S8
GRAPE M.M.,948
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SU. WHITE PM.,051
WHITE PEARL CS.,070
SILVER ME.,1C0
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3N8
BORDEAUX MC.,3P2
ROSE ME.,3Q0
BEIGE ME.,4P7
JADE GREEN M.M.,6S9
DK.BLUE M.M.,8P4
LT.BLUE ME.,8Q6
BLUE,8S8
GRAPE M.M.,948
9015460034
main90154-60034
9017906159
main90179-06159
10 parts on this diagram · 2 diagrams in section
MIRROR for Toyota PREMIO/ALLION
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota PREMIO/ALLION. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
