Toyota PREMIO/ALLION — METER

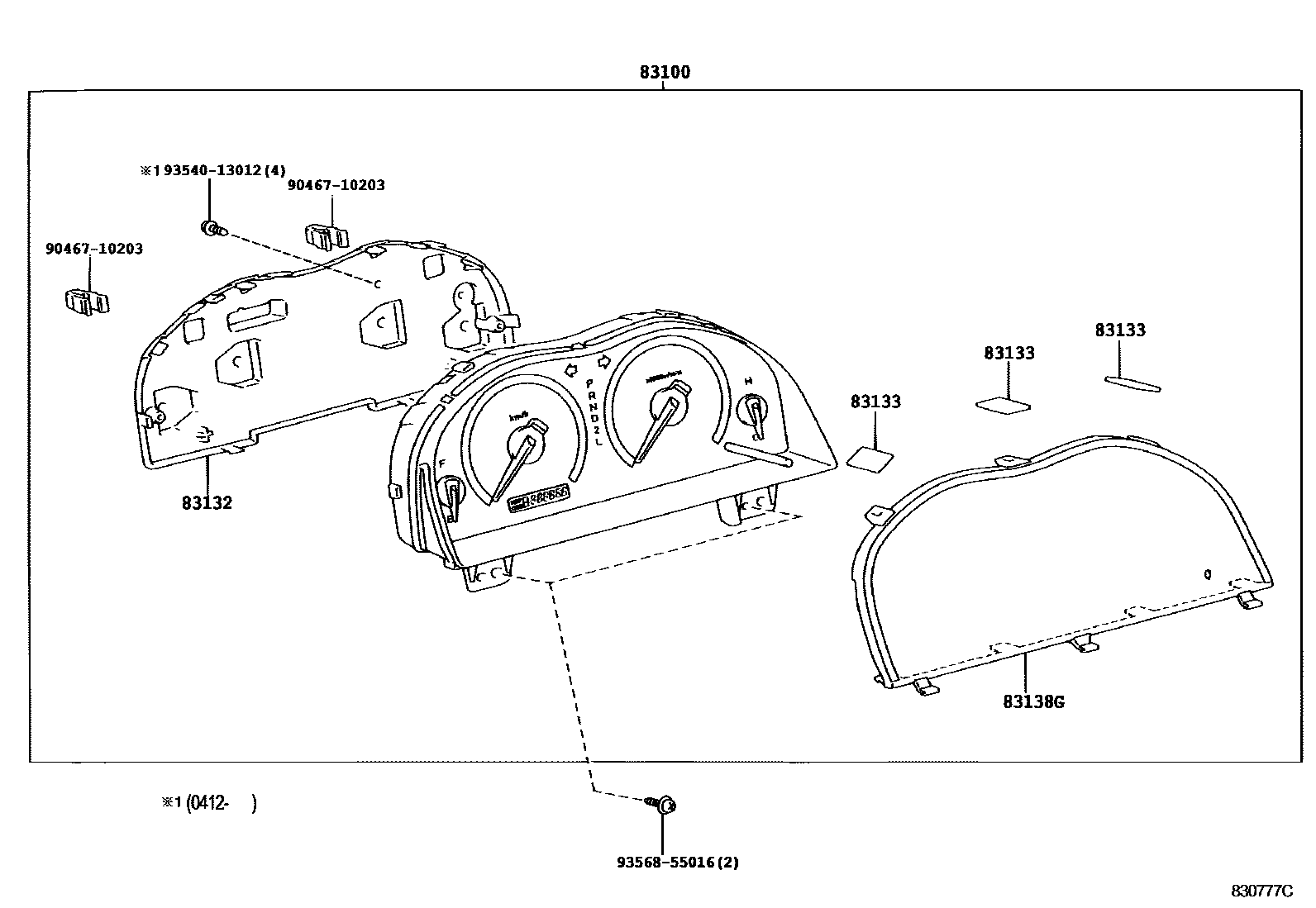

Parts diagram

83100METER ASSY, COMBINATION

main83800-20830i200112-200412

main83800-20850i200112-200412

main83800-20870i200112-200412

main83800-20880i200112-200412

main83800-20890i200112-200412

main83800-20A00i200412

main83800-20A10i200412

main83800-20A20i200412

main83800-20A30i200412

main83800-2B280i200412

main83800-2B290i200412

main83800-2B520i200412

83132CASE, COMBINATION METER

main83821-20830i200210-200412

main83821-20A20i200412

main83821-2B280i200412

83133PLATE, COMBINATION METER, NO.1

main83811-20830×3i200112-200412

83138GGLASS, COMBINATION METER

main83852-20830i200212-200412

main83852-20890i200112-200412

main83852-2B280i200412

9046710203

main90467-10203

9354013012

main93540-13012

9356855016

main93568-55016

7 parts on this diagram · 1 diagram in section

METER for Toyota PREMIO/ALLION

This section contains 7 genuine Toyota parts for the METER system of the Toyota PREMIO/ALLION. Key components include: METER ASSY, COMBINATION, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1, GLASS, COMBINATION METER.
