Toyota PREMIO/ALLION — INTERIOR LAMP
6402ROOF HEADLINING & SILENCER PAD
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81249SWITCH, ROOM LAMP
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
IVORY,TRIM4#
FLAXEN,TRIM0#
LT.GRAY,TRIM1#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
81260BBULB(FOR GLOVE BOX)
81260CBULB(FOR MAP LAMP)
81269SWITCH, MAP LAMP
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
LT.GRAY,TRIM1#
GREGE,TRIM4#
81340BBULB (FOR VANITY LAMP)
81360LAMP ASSY, STEP OR SPOT
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
GREGE,TRIM4#
81360UBULB, SPOT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
8202WIRING & CLAMP
8603NAVIGATION & FRONT MONITOR DISPLAY
18 parts on this diagram · 2 diagrams in section

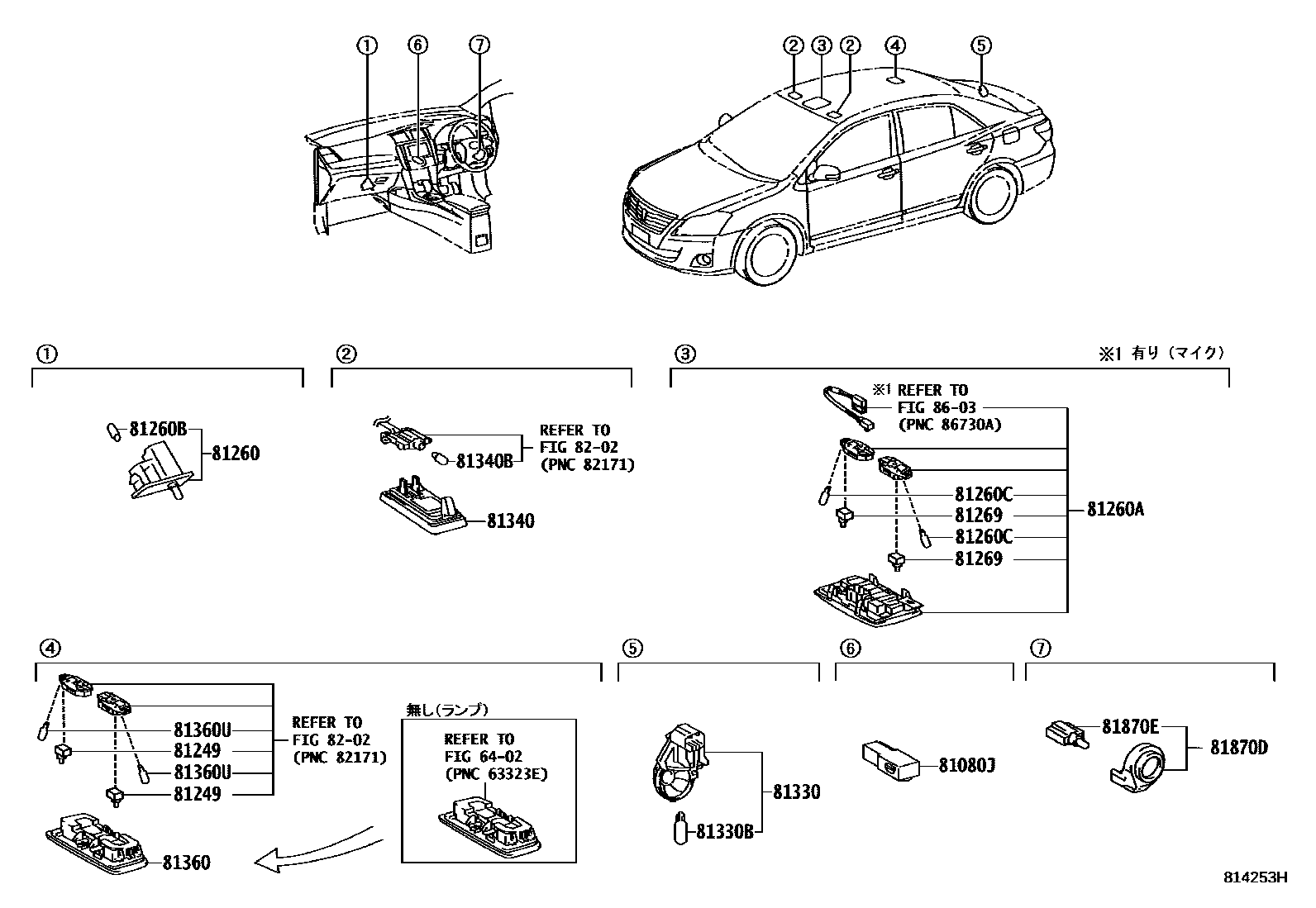

INTERIOR LAMP for Toyota PREMIO/ALLION
This section contains 18 genuine Toyota parts for the INTERIOR LAMP system of the Toyota PREMIO/ALLION. Key components include: ROOF HEADLINING & SILENCER PAD, LAMP ASSY, INTERIOR ILLUMINATION, NO.1, SWITCH, ROOM LAMP, LAMP ASSY, GLOVE BOX, LAMP ASSY, MAP.
