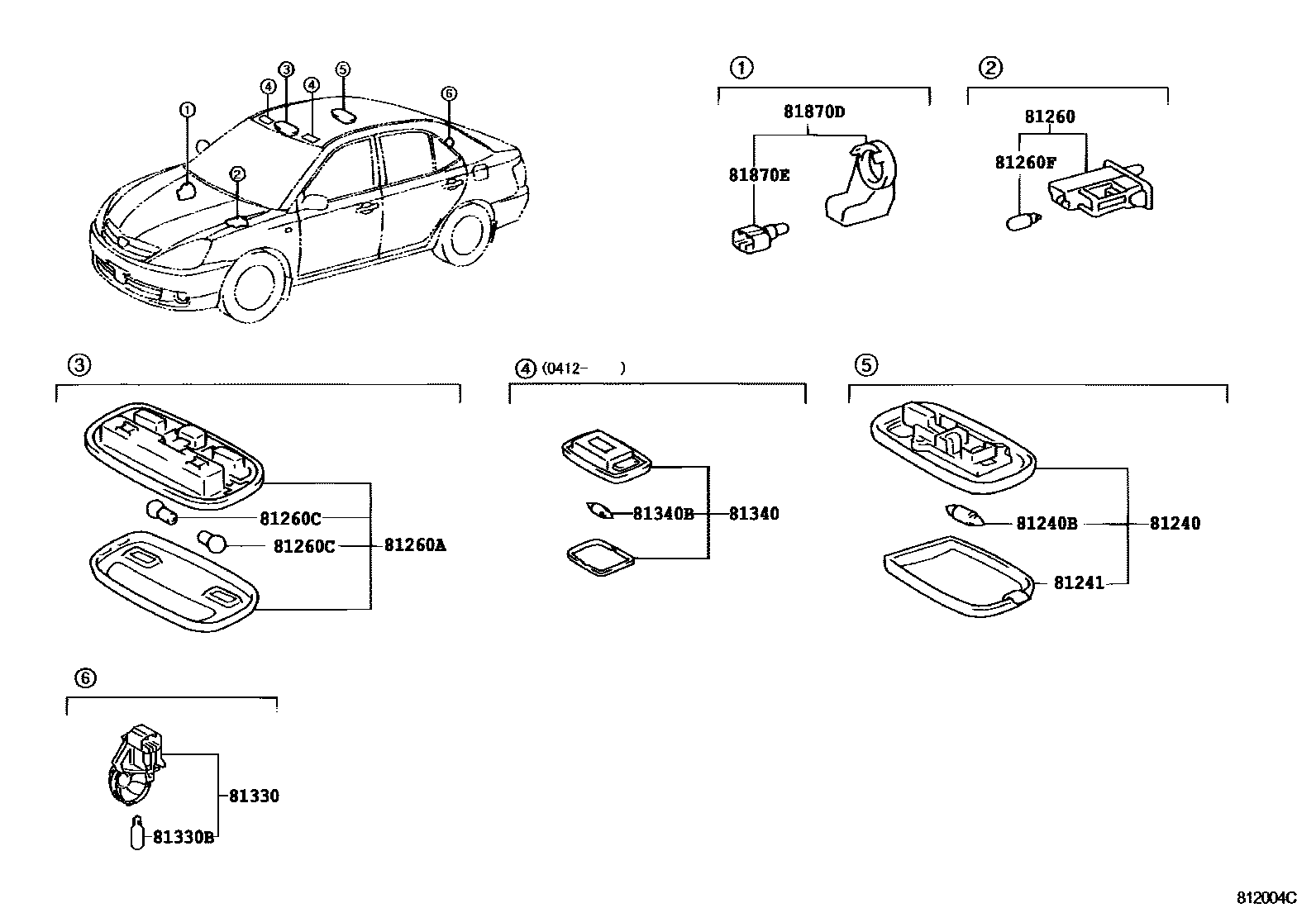

Toyota PREMIO/ALLION — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12070-A0i200112-200412

IVORY,TRIM0#

main81240-12070-B0i200112-200412

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200112-200412

81241LENS, ROOM LAMP, NO.1

main81241-12070i200412

81260LAMP ASSY, GLOVE BOX

main81260-33030i200112-200412

81260ALAMP ASSY, MAP

main81260-12110-A0i200112-200412

IVORY,TRIM0#

main81260-12110-B0i200112-200412

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2i200112-200412

81260FBULB(FOR GLOVE BOX LAMP)

main90981-11018i200112-200412

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020i200112-200412

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i200112-200412

81340LAMP ASSY, VANITY

main81340-33140-A0×2i200412-200705

IVORY,TRIM0#

main81340-33140-B0×2i200412-200705

LT.GRAY,TRIM1#

81340BBULB (FOR VANITY LAMP)

main99132-13050×2i200412

81870DLAMP ASSY, KEY CYLINDER

main81870-13010i200112-200412

81870EBULB, KEY CYLINDER LAMP

main90010-01056i200112-200412

13 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota PREMIO/ALLION

This section contains 13 genuine Toyota parts for the INTERIOR LAMP system of the Toyota PREMIO/ALLION. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, GLOVE BOX, LAMP ASSY, MAP.
