Toyota PREMIO/ALLION — FRONT DOOR WINDOW REGULATOR & HINGE

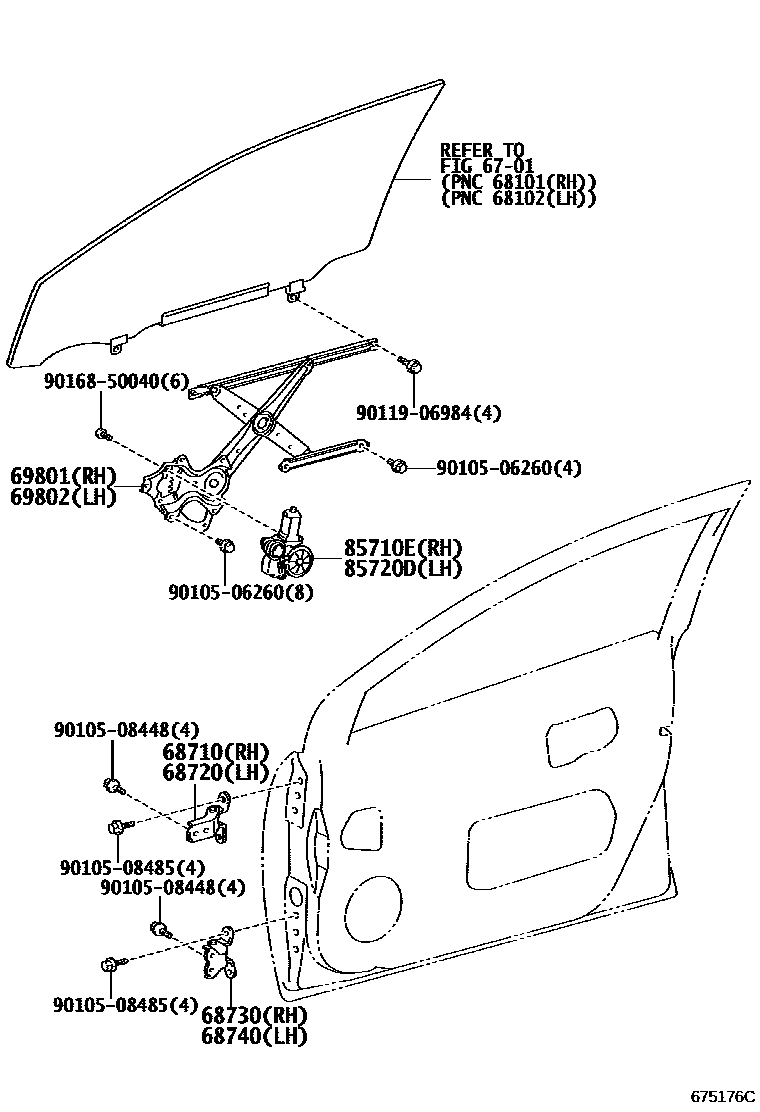

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i200705-201004

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i200705-201004

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i200705-201004

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i200705-201004

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20310i200705-201004

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20330i200705-201004

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12490i201302-201606

main85710-20400i200705-200812

main85710-30400i201004-201008

main85710-48060i200901-200903

main85710-60310i201606-202009

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12490i201302-201606

main85720-20420i200705-200812

main85720-30340i200904-201004

main85720-48070i200901-200903

main85720-60310i201606-202009

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota PREMIO/ALLION

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota PREMIO/ALLION. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
