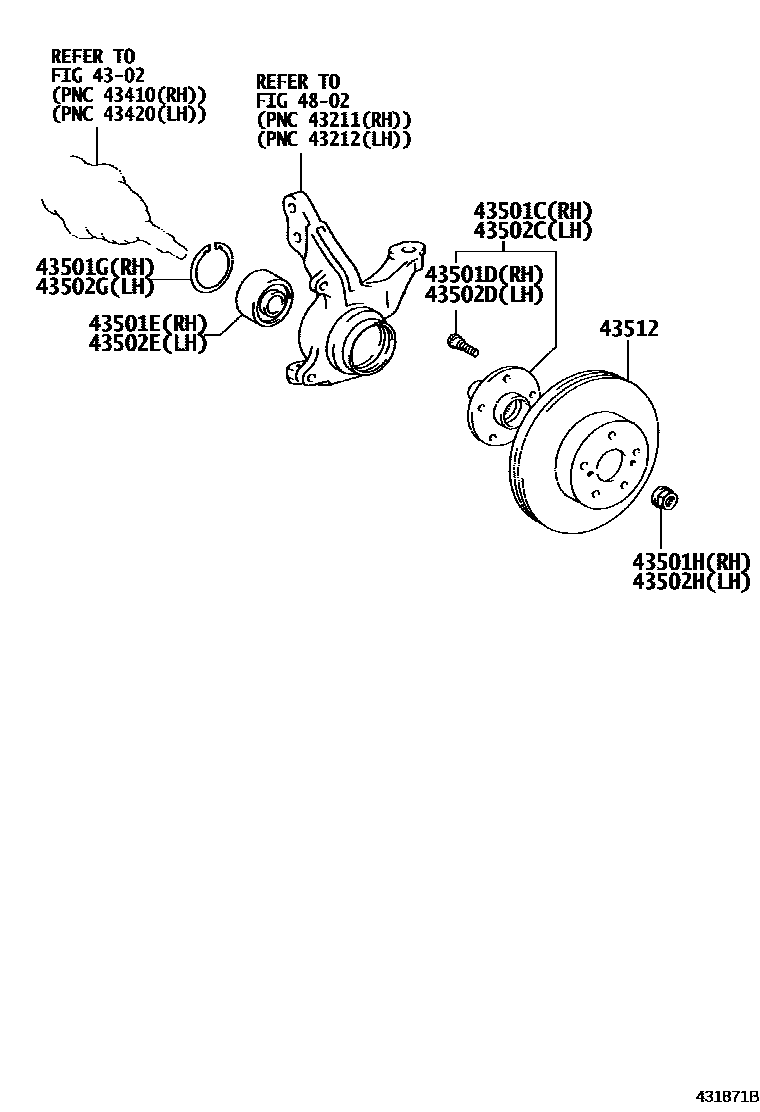

Toyota PREMIO/ALLION — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32080i200705-201004

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200705-201004

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066i200705-201004

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i200705-201004

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200705-201004

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32080i200705-201004

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200705-201004

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066i200705-201004

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i201606

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200705-201004

43512DISC, FRONT

main43512-12710×2supersedes 43512-20750i200705-201004

main43512-20750×2i200705-201004

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota PREMIO/ALLION

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota PREMIO/ALLION. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
