Toyota PREMIO/ALLION — CONSOLE BOX & BRACKET
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
55620HOLDER ASSY, INSTRUMENT PANEL CUP
DK.RED,TRIM1#
YELLOWISH BROWN,TRIM4#
DK.RED,TRIM1#
YELLOWISH BROWN,TRIM40
DARK BROWN,TRIM11,4#
BROWN,TRIM4#
DK.BROWN,TRIM1#
REDISH BROWN 22BN165,TRIM00
BROWN,TRIM00,2#
sub55620-20052
58811DCLIP(FOR CONSOLE BOX)
58815ACARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
IVORY,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM0#,2#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
58817AINSERT, CONSOLE BOX, FRONT NO.2
IVORY,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM0#,2#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
58821CPANEL, CONSOLE, UPPER
DK.RED,TRIM1#
YELLOWISH BROWN,TRIM40
DARK BROWN,TRIM11,4#
BROWN,TRIM4#
DK.BROWN,TRIM1#
LIGHT BROWN,TRIM20
REDISH BROWN,TRIM00
BROWN,TRIM00,2#
LIGHT BROWN 22BN166,TRIM20
REDISH BROWN 22BN165,TRIM00
BROWN 22BN164,TRIM00,20
58822APANEL, CONSOLE, UPPER REAR
DK.RED,TRIM1#
YELLOWISH BROWN,TRIM40
DARK BROWN,TRIM11,4#
BROWN,TRIM4#
DK.BROWN,TRIM1#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
IVORY,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
58833DCLIP(FOR CONSOLE COVER)
BLACK,TRIM0#,2#
IVORY,TRIM4#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
DK.GRAY,TRIM1#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
IVORY,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
58839ACOVER, CONSOLE BOX HOLE
IVORY,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM0#,2#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
IVORY,TRIM4#
BLACK,TRIM0#,2#
ORCHID BROWN,TRIM1#
58843BEZEL, SHIFTING HOLE
58849COVER, CONSOLE BOX HOLE, NO.2
IVORY,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM0#,2#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
58901ABOX SUB-ASSY, CONSOLE, REAR
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM4#
BLACK/REDISH BROWN,TRIM00
BLACK/BROWN,TRIM00,2#
ORCHID BROWN,TRIM1#
BLACK/REDISH BROWN,TRIM00
BLACK/BROWN,TRIM00,2#
IVORY,TRIM4#
BLACK/REDISH BROWN,TRIM00
BLACK/BROWN,TRIM00,2#
ORCHID BROWN,TRIM1#
BLACK/REDISH BROWN,TRIM00
BLACK/BROWN,TRIM00,2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
DK.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM4#
FLAXEN,TRIM0#
DK.GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
FLAXEN,TRIM0#
BLACK,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58959CCUSHION, CONSOLE COMPARTMENT DOOR
58972ABASE, CONSOLE COMPARTMENT DOOR LOCK
58973PIN, CONSOLE COMPARTMENT DOOR LOCK
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
7404
5539420020BRACKET, INSTRUMENT PANEL TO PEDAL
main55394-20020
9015960431
main90159-60431
9167380616
main91673-80616
9356054012
main93560-54012
9356855014
main93568-55014

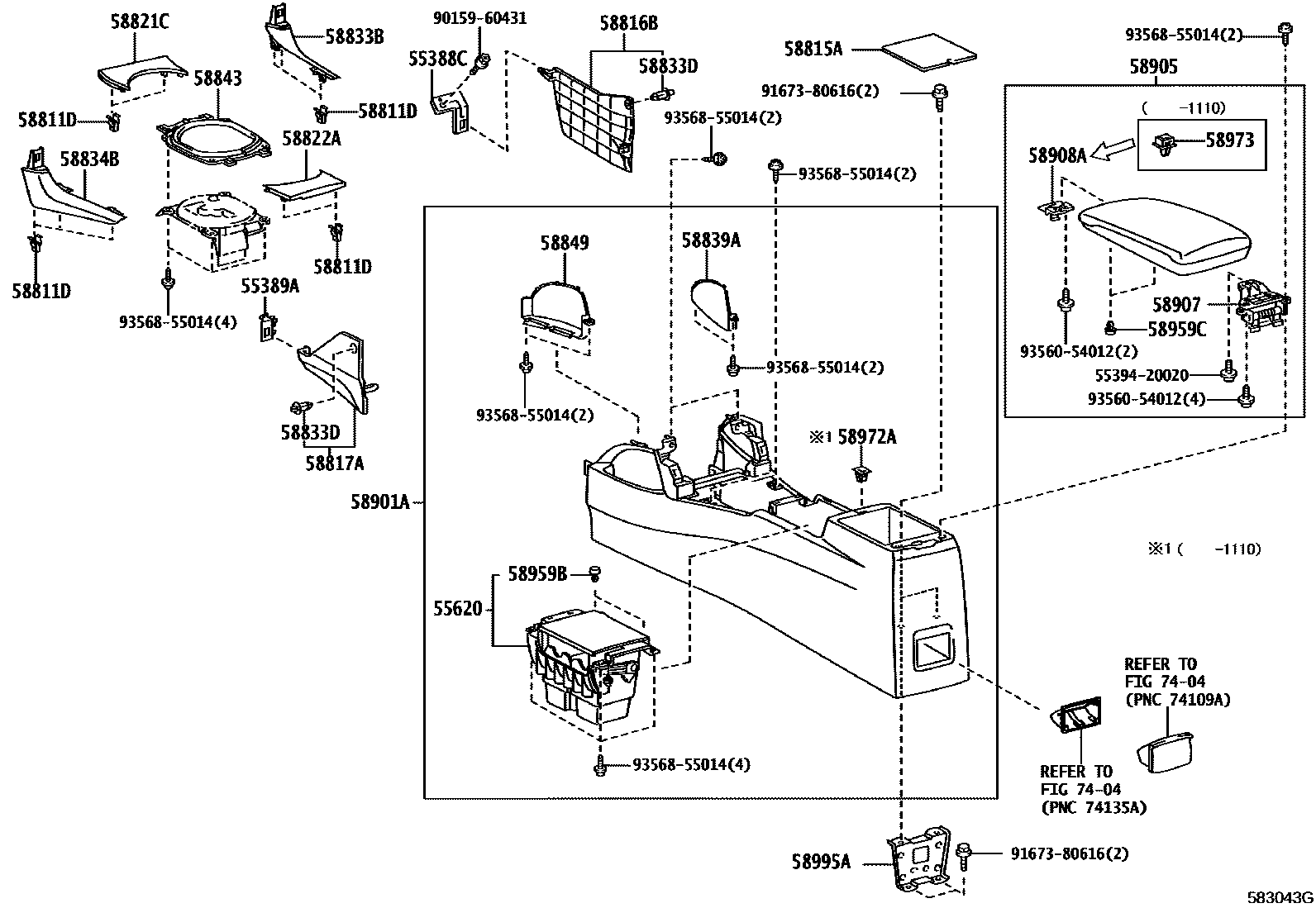

30 parts on this diagram · 2 diagrams in section
