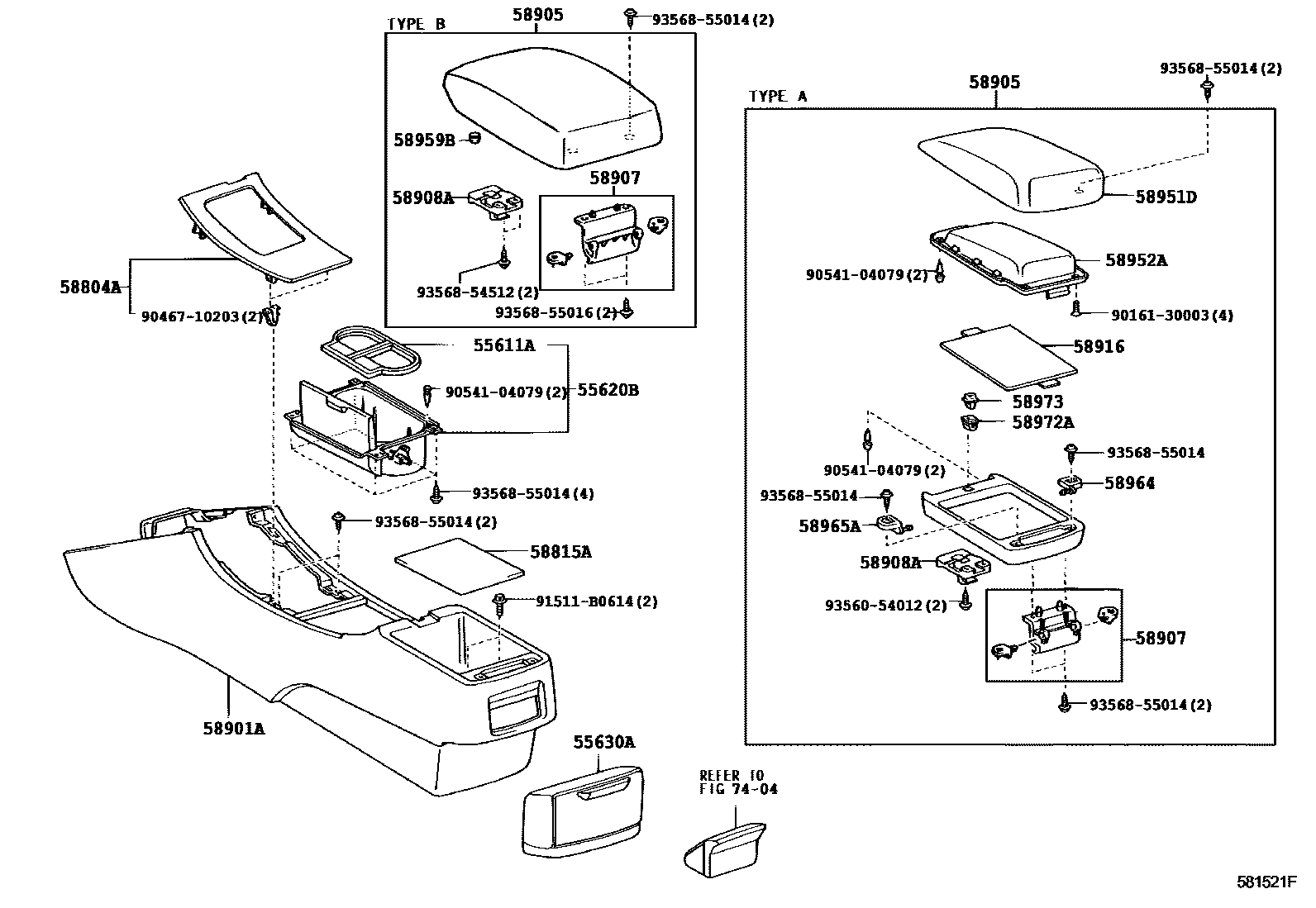

Toyota PREMIO/ALLION — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55611ATRAY, INSTRUMENT PANEL UNDER

main55617-20010iAZT240,NZT240,ZZT24#200412

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-20010iNZT240,ZZT24#200412-200705

main55620-20030-A0iAZT240..ALN200112-200412

main55620-20030-B0iAZT240..ALN200112-200412

main55620-20030-E0iAZT240..PRM200412-200705

main55620-20030-E1iNZT240,ZZT24#..PRM200607-200705

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-20010-A1iAZT240,NZT240,ZZT24#200412-200705

IVORY,TRIM0#

main55630-20010-B1iAZT240,NZT240,ZZT24#200412-200705

GRAY,TRIM1#

main55630-20010-E1iAZT240,NZT240,ZZT24#200112-200412

BEIGE,TRIM0#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20370-A0iAZT240..ALN200112-200412

main58804-20370-B0iAZT240..ALN200112-200412

main58804-20370-E0iNZT240..PRM200607-200705

main58804-20370-E1iNZT240..PRM200607-200705

main58804-20430iNZT240,ZZT24#200210-200412

main58804-20440-A0iAZT240,ZZT24#..PRM200412-200705

main58804-20440-E0iZZT24#..ALN200412-200705

main58804-20440-E1iZZT24#..PRM200607-200705

main58804-20450iZZT24#200412-200705

58815ACARPET, CONSOLE BOX

main58815-20090iAZT240,NZT240,ZZT24#200112-200412

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-20180-A1iAZT240,NZT240,ZZT24#200412-200705

IVORY,TRIM0#

main58911-20180-B1iAZT240,NZT240,ZZT24#200412-200705

GRAY,TRIM1#

main58911-20180-E1iAZT240,NZT240,ZZT24#200112-200412

BEIGE,TRIM0#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12410-B4iNZT240,ZZT24#200210-200412

main58905-20390-A1iAZT240,NZT240,ZZT24#..ALN200112-200412

main58905-20390-B1iAZT240,NZT240,ZZT24#..ALN200112-200412

main58905-20400-A1iAZT240,NZT240,ZZT24#..PRM200112-200412

main58905-20400-B0iAZT240,NZT240,ZZT24#..PRM200112-200412

main58905-20420-B0iNZT240,ZZT24#..PRM200112-200412

main58905-20430-A0iAZT240,ZZT24#..PRM200112-200412

main58905-20430-A1iAZT240,ZZT24#..PRM200412-200705

main58905-20430-B0iNZT240,ZZT24#..ALN200304-200412

main58905-20440-B0iNZT240,ZZT24#..ALN200112-200412

sub58905-12500

main58905-20450-A0iAZT240,NZT240,ZZT24#200412-200705

main58905-20450-B0iAZT240,NZT240,ZZT24#200412-200705

main58905-20460-B0iNZT240,ZZT24#200412-200705

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12050iAZT240,NZT240,ZZT24#200112-200412

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iAZT240,NZT240,ZZT24#200112-200412

58916MAT, BOX BOTTOM

main58916-12080iAZT240,NZT240,ZZT24#200112-200412

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-20280-A1iAZT240,NZT240,ZZT24#..ALN200112-200412

main58951-20280-B1iAZT240,NZT240,ZZT24#..ALN200112-200412

main58951-20290-A1iAZT240,NZT240,ZZT24#..PRM200112-200412

main58951-20290-B0iAZT240,NZT240,ZZT24#..PRM200112-200412

main58951-20300-B0iNZT240,ZZT24#..PRM200112-200412

main58951-20310-A0iNZT240..PRM200404-200412

main58951-20310-A1iAZT240,ZZT24#..PRM200412-200705

main58951-20310-B0iNZT240,ZZT24#..ALN200607-200705

main58951-20320-B0iNZT240,ZZT24#..ALN200112-200404

main58951-20330-A0iAZT240,NZT240,ZZT24#200412-200705

main58951-20330-B0iAZT240,NZT240,ZZT24#200412-200705

main58951-20340-B0iNZT240,ZZT24#200412-200705

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-12060-A3iAZT240,NZT240,ZZT24#200412-200705

IVORY,TRIM0#

main58952-12060-B9iAZT240,NZT240,ZZT24#200412-200705

MD.GRAY,TRIM1#

main58952-12060-E0iAZT240,NZT240,ZZT24#200112-200412

MD.NEUTRAL BONE,TRIM0#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16020×2iNZT240,ZZT24#200210-200412

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20040iAZT240,NZT240,ZZT24#200112-200412

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20050iAZT240,NZT240,ZZT24#200412

58972ABASE, CONSOLE COMPARTMENT DOOR LOCK

main58972-34010iAZT240,NZT240,ZZT24#200412

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-34010iAZT240,NZT240,ZZT24#200112-200412

7404

9016130003

main90161-30003

9046710203

main90467-10203

9054104079

main90541-04079

91511B0614

main91511-B0614

9356054012

main93560-54012

9356854512

main93568-54512

9356855014

main93568-55014

9356855016

main93568-55016

26 parts on this diagram · 3 diagrams in section
