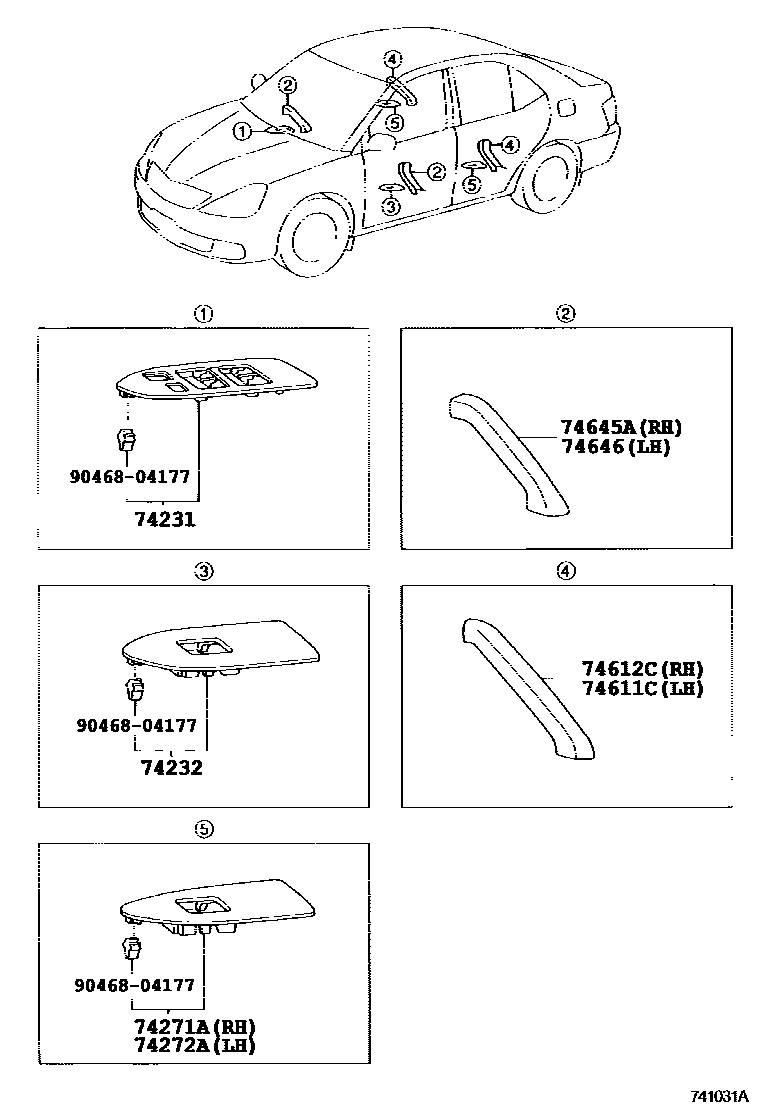

Toyota PREMIO/ALLION — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20420-A0i200412-200705

IVORY,TRIM0#

main74231-20420-B0i200112-200412

MD.GRAY,TRIM1#

main74231-20420-E0i200112-200412

MD.NEUTRAL BONE,TRIM0#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20350-A0i200412-200705

IVORY,TRIM0#

main74232-20350-B0i200112-200412

MD.GRAY,TRIM1#

main74232-20350-E0i200112-200412

MD.NEUTRAL BONE,TRIM0#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-20040-A0i200412-200705

IVORY,TRIM0#

main74271-20040-B0i200112-200412

MD.GRAY,TRIM1#

main74271-20040-E0i200112-200412

MD.NEUTRAL BONE,TRIM0#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-20030-A0i200412-200705

IVORY,TRIM0#

main74272-20030-B0i200112-200412

MD.GRAY,TRIM1#

main74272-20030-E0i200112-200412

MD.NEUTRAL BONE,TRIM0#

74611CCOVER, ASSIST GRIP, LH

main74611-20040i200112-200412

74612COVER, ASSIST GRIP

main74612-13010-A0×6i200112-200412

IVORY,TRIM0#

main74612-13010-B0×6i200112-200412

LT.GRAY,TRIM1#

main74612-68010-A0×8i200412-200705

IVORY,TRIM0#

main74612-68010-B0×8i200412-200705

LT.GRAY,TRIM1#

74612CCOVER, ASSIST GRIP, RH

main74612-20060i200112-200412

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-20010i200112-200412

74646COVER, DOOR ASSIST GRIP, LH

main74646-20010i200112-200412

9046804177

main90468-04177

10 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota PREMIO/ALLION

This section contains 17 genuine Toyota parts for the ARMREST & VISOR system of the Toyota PREMIO/ALLION. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
