Toyota PREMIO/ALLION — ALTERNATOR

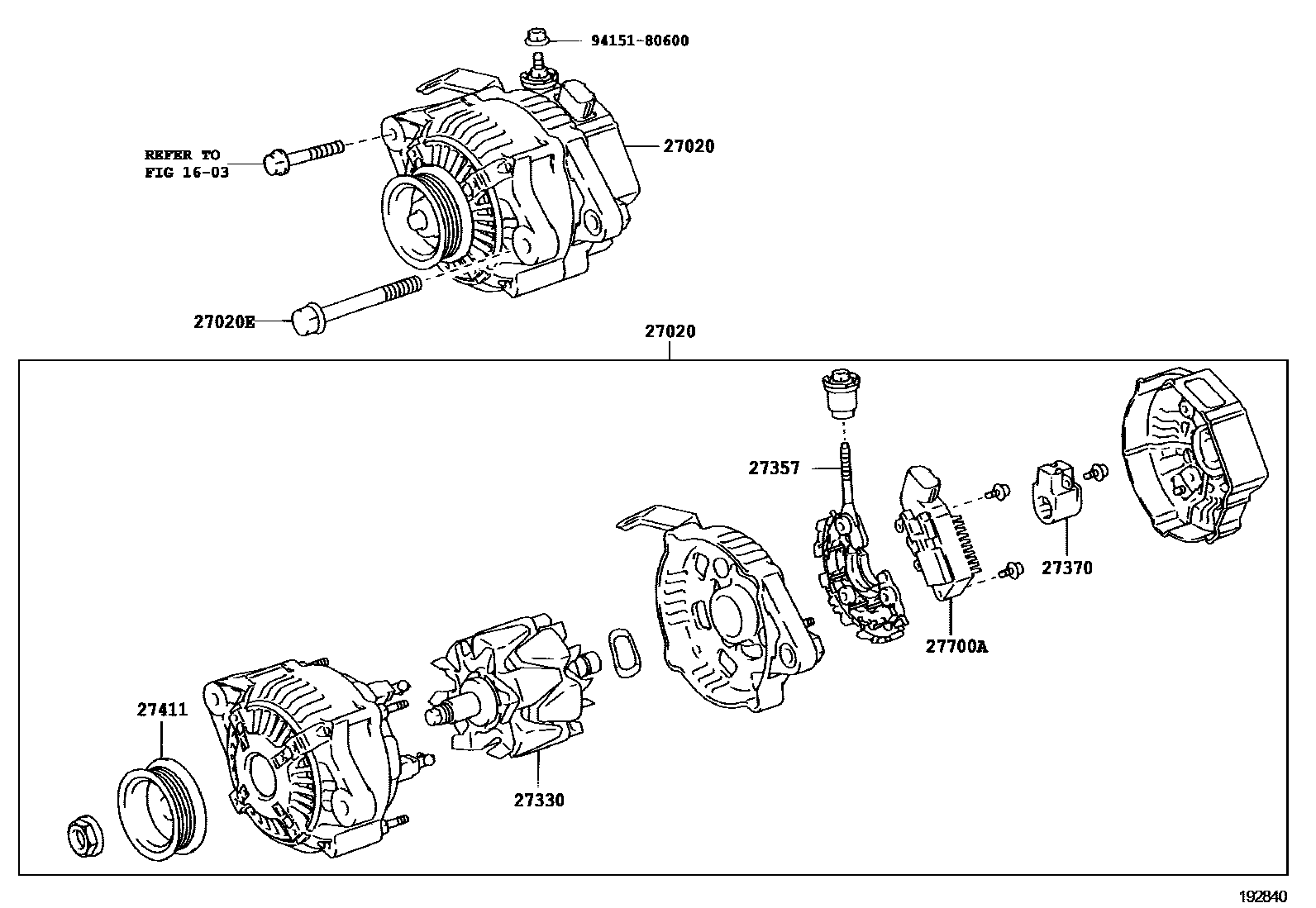

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

27020ALTERNATOR ASSY

main27060-21130i200705-200906

main27060-21131i200907-201004

main27060-21180i201606

main27060-37020i200705-200902

main27060-37021i200903-201004

main27060-37071i201004-201212

main27060-37160i201606-202009

27020EBOLT(FOR ALTERNATOR)

main90105-10075i201004-201606

main90105-10307i201004-201606

27330ROTOR ASSY, ALTERNATOR

main27330-30070i200705-201004

main27330-30130i200904-201004

main27330-47310i201606

main27330-47330i201606

main27330-62220i200705-200904

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i201004-201212

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i200705-201004

main27370-31220i200705-201004

27411PULLEY, ALTERNATOR

main27411-70140i200705-201004

27700AREGULATOR ASSY, GENERATOR

main27700-28080i200705-201004

9415180600

main94151-80600

9 parts on this diagram · 4 diagrams in section

ALTERNATOR for Toyota PREMIO/ALLION

This section contains 30 genuine Toyota parts for the ALTERNATOR system of the Toyota PREMIO/ALLION. Key components include: ENGINE OIL PUMP, RADIATOR & WATER OUTLET, ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END.
