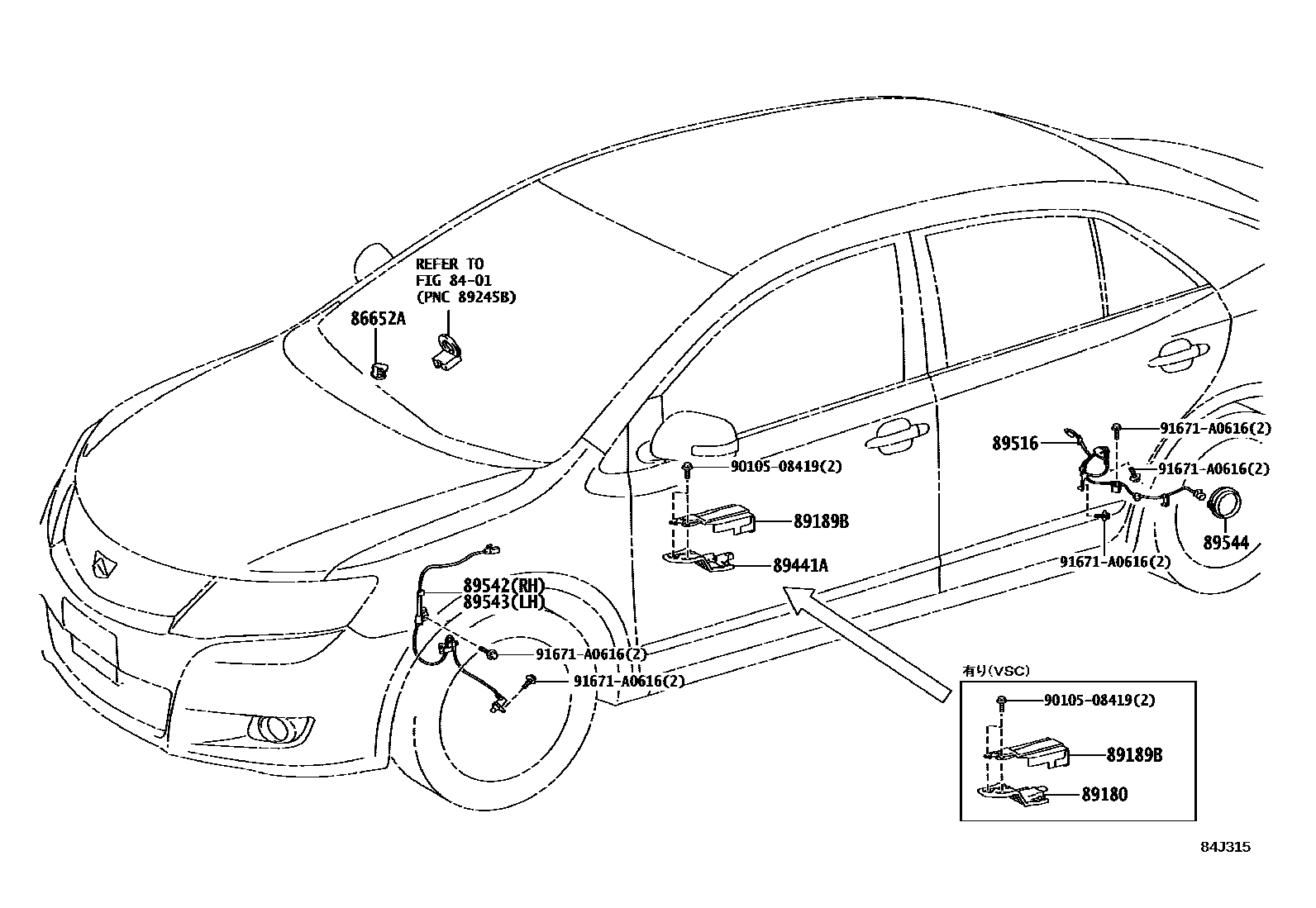

Toyota PREMIO/ALLION — ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010i200712-201004

89180SENSOR ASSY, YAWRATE

main89180-20030i200712-201004

main89180-20040i201212-201409

89189BBRACKET, YAWRATE SENSOR

main89189-20080i201004-201409

89441ASENSOR, DECELERATION

main89440-20070i200705-201004

89516WIRE, SKID CONTROL SENSOR

main89516-20030i201606-202009

main89516-20040i200705-201004

89542SENSOR, SPEED, FRONT RH

main89542-20180i200705-201004

89543SENSOR, SPEED, FRONT LH

main89543-20180i200705-201004

main89543-20200i201004-201606

89544SENSOR, SKID CONTROL

main89544-52040×2i200705-201004

9010508419

main90105-08419

91671A0616

main91671-A0616

11 parts on this diagram · 4 diagrams in section

ABS & VSC for Toyota PREMIO/ALLION

This section contains 18 genuine Toyota parts for the ABS & VSC system of the Toyota PREMIO/ALLION. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, SENSOR ASSY, YAWRATE, BRACKET, YAWRATE SENSOR.
