Toyota PREMIO/ALLION — ABS & VSC

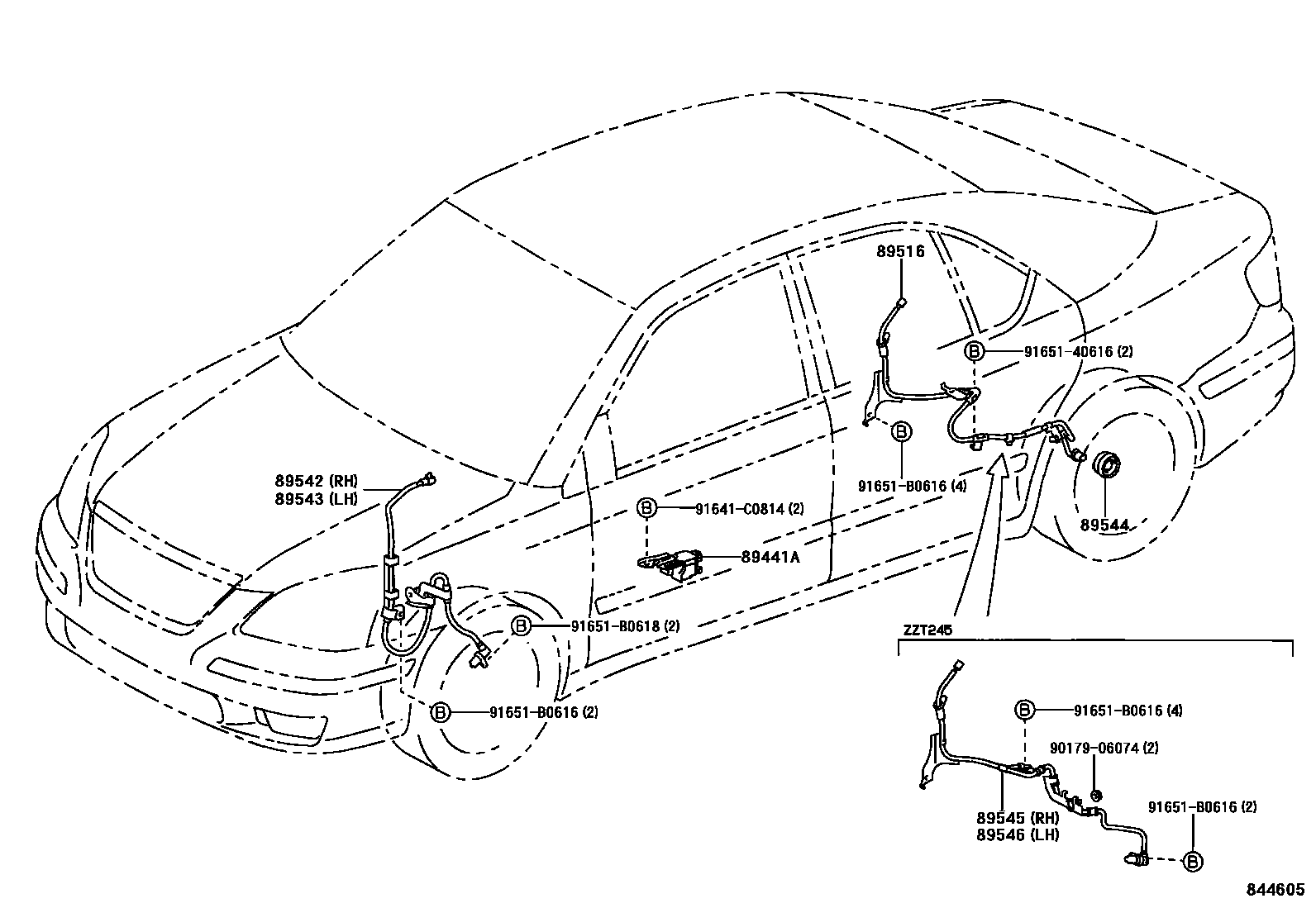

Parts diagram

89441ASENSOR, DECELERATION

main89440-32040i200112-200412

89516WIRE, SKID CONTROL SENSOR

main89516-32031i200412

main89516-32041i200112-200412

89542SENSOR, SPEED, FRONT RH

main89542-20170i200112-200412

89543SENSOR, SPEED, FRONT LH

main89543-20170i200412

89544SENSOR, SKID CONTROL

main89544-32030×2i200112-200310

main89544-32040×2i200112-200310

89545SENSOR, SPEED, REAR RH

main89545-32051i200112-200412

89546SENSOR, SPEED, REAR LH

main89546-20170i200412

main89546-32051i200112-200412

9017906074

main90179-06074

91641C0814

main91641-C0814

9165140616

main91651-40616

91651B0616

main91651-B0616

91651B0618

main91651-B0618

12 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota PREMIO/ALLION

This section contains 12 genuine Toyota parts for the ABS & VSC system of the Toyota PREMIO/ALLION. Key components include: SENSOR, DECELERATION, WIRE, SKID CONTROL SENSOR, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SKID CONTROL.
