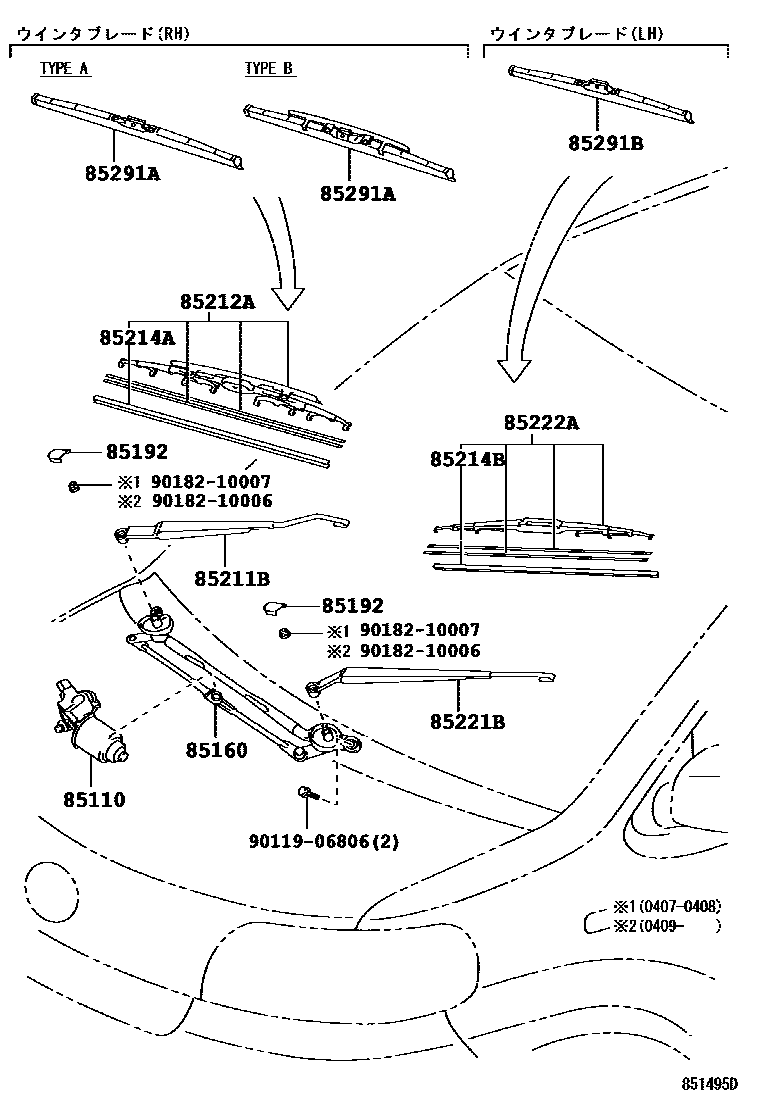

Toyota PORTE — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52390supersedes 85110-52261i200407-200611

main85110-52391supersedes 85110-52261i200612-200706

85160LINK ASSY, WINDSHIELD WIPER

main85150-52290supersedes 85150-52220i200612-200706

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200407-200706

85211BARM, FRONT WIPER, RH

main85211-52170i200407-200706

85212ABLADE, FR WIPER, RH

main85212-30370i200706

85214ARUBBER, WIPER, RH

main85214-50100i200407-200706

85214BRUBBER, WIPER, LH

main85214-68010i200407-200609

main85214-68011i200610-200706

85221BARM, FRONT WIPER, LH

main85221-52200i200407-200706

85222ABLADE, FR WIPER, LH

main85222-68010i200407-200609

main85222-68011i200610-200706

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-24090i200407-200706

main85291-24100i200407-200706

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28120i200407-200706

9011906806

main90119-06806

9018210006

main90182-10006

9018210007

main90182-10007

14 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota PORTE

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PORTE. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
