Toyota PORTE — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E370
8271252070CLAMP, WIRING HARNESS
main82712-52070
8538713160CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-13160
8538722410CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-22410
9011906419
main90119-06419
9046907011
main90469-07011

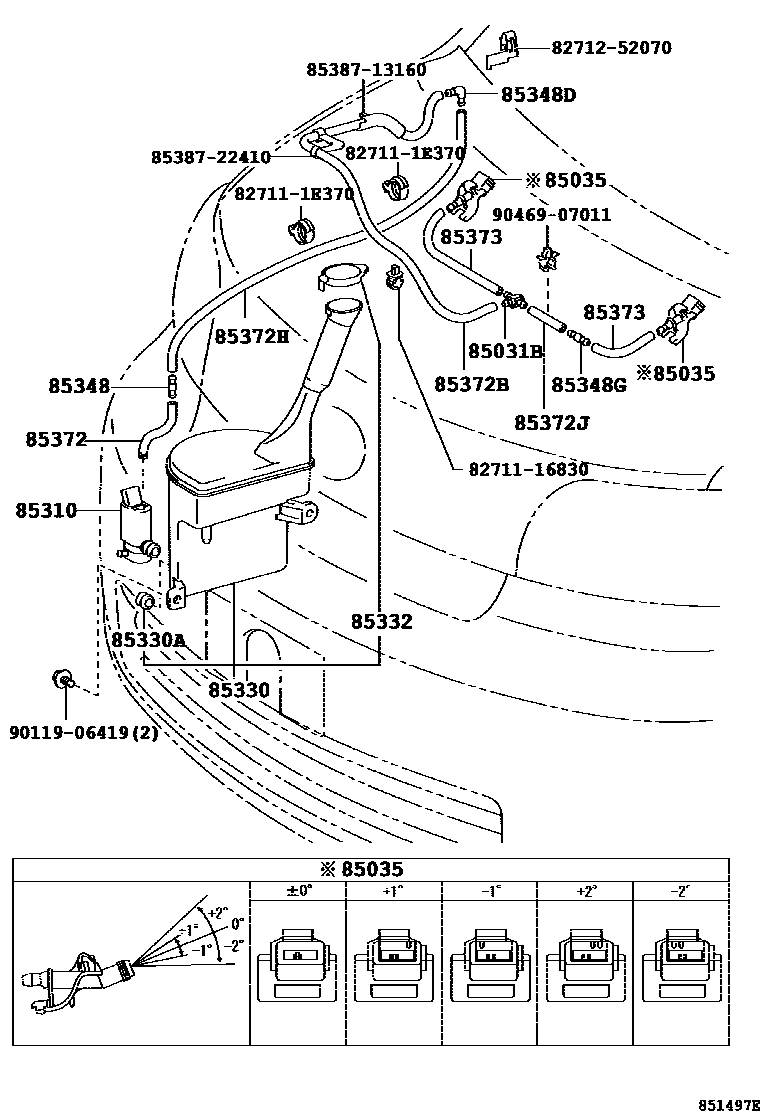

21 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota PORTE
This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PORTE. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
