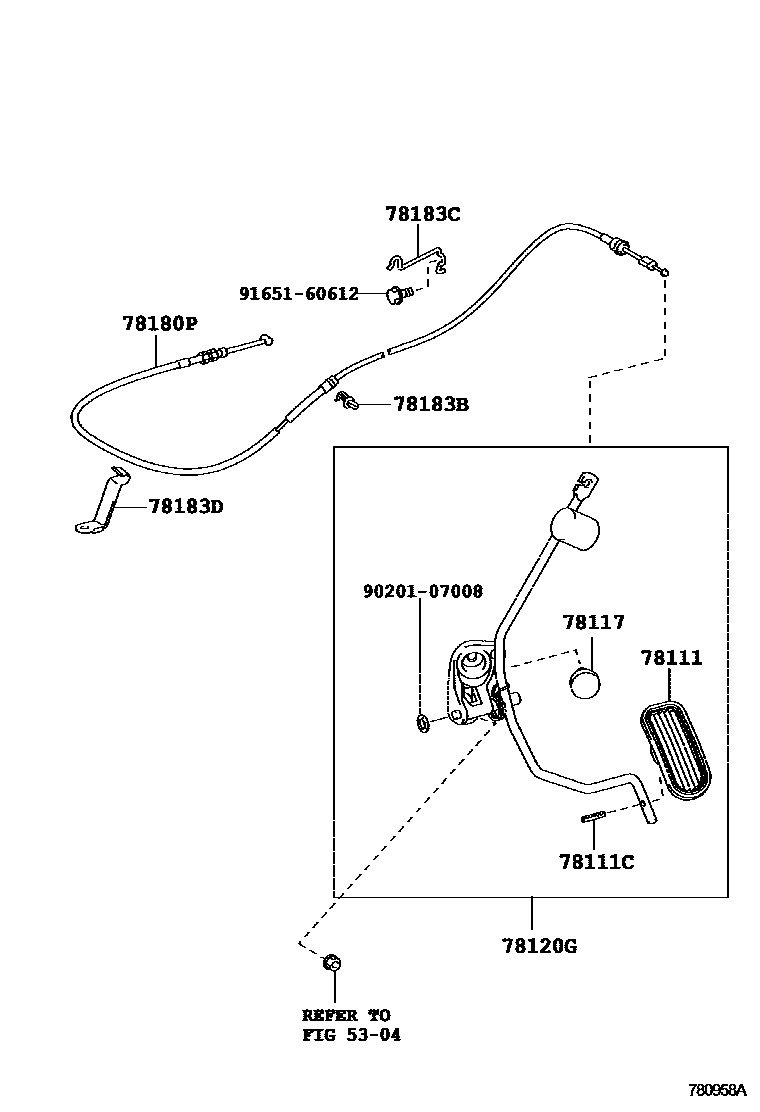

Toyota PORTE — ACCELERATOR LINK

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

78111PEDAL, ACCELERATOR

main78111-33020i200407-200706

main78111-52020i201108

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019i200407-200706

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06036i200407-200706

78120GROD ASSY, ACCELERATOR PEDAL

main78120-52120i200407-200706

main78120-52121i201108

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52130i200407-200706

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-52070i200407-200706

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52080i200407-200706

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-52120i200407-200706

9020107008

main90201-07008

9165160612

main91651-60612

11 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota PORTE

This section contains 11 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota PORTE. Key components include: FRONT FENDER APRON & DASH PANEL, PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL), CUSHION (FOR ACCELERATOR ROD), ROD ASSY, ACCELERATOR PEDAL.
