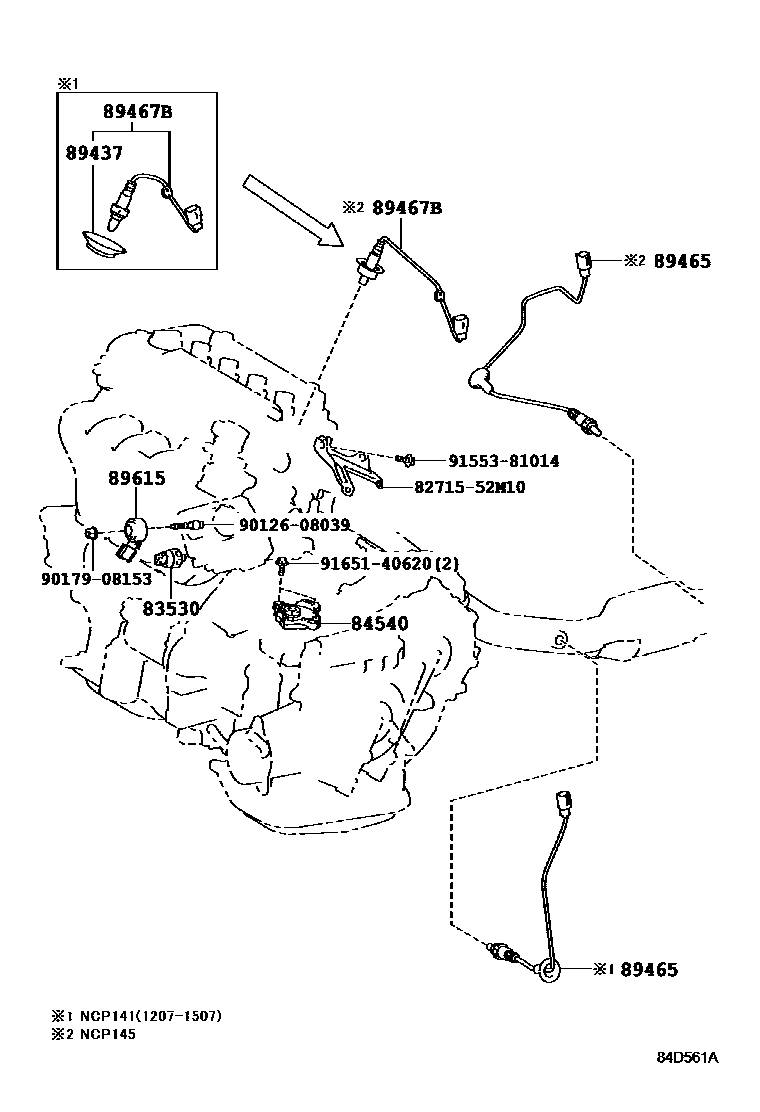

Toyota PORTE/SPADE — SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84540SWITCH ASSY, NEUTRAL START
89437COVER, SENSOR
89465SENSOR, OXYGEN
89467BSENSOR, AIR FUEL RATIO
89615SENSOR, KNOCK CONTROL
8271552M10BRACKET,WIRING HARNESS CLAMP
main82715-52M10
9012608039
main90126-08039
9017908153
main90179-08153
9155381014
main91553-81014
9165140620
main91651-40620
11 parts on this diagram · 13 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota PORTE/SPADE
This section contains 143 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota PORTE/SPADE. Key components include: RELAY ASSY, STARTER, NO.1, RELAY ASSY, STARTER, NO.2, SENSOR ASSY, BATTERY CURRENT, SENSOR ASSY, BATTERY STATE, HOLDER, BATTERY CURRENT SENSOR.
