Toyota PORTE/SPADE — PRE-COLLISION SYSTEM

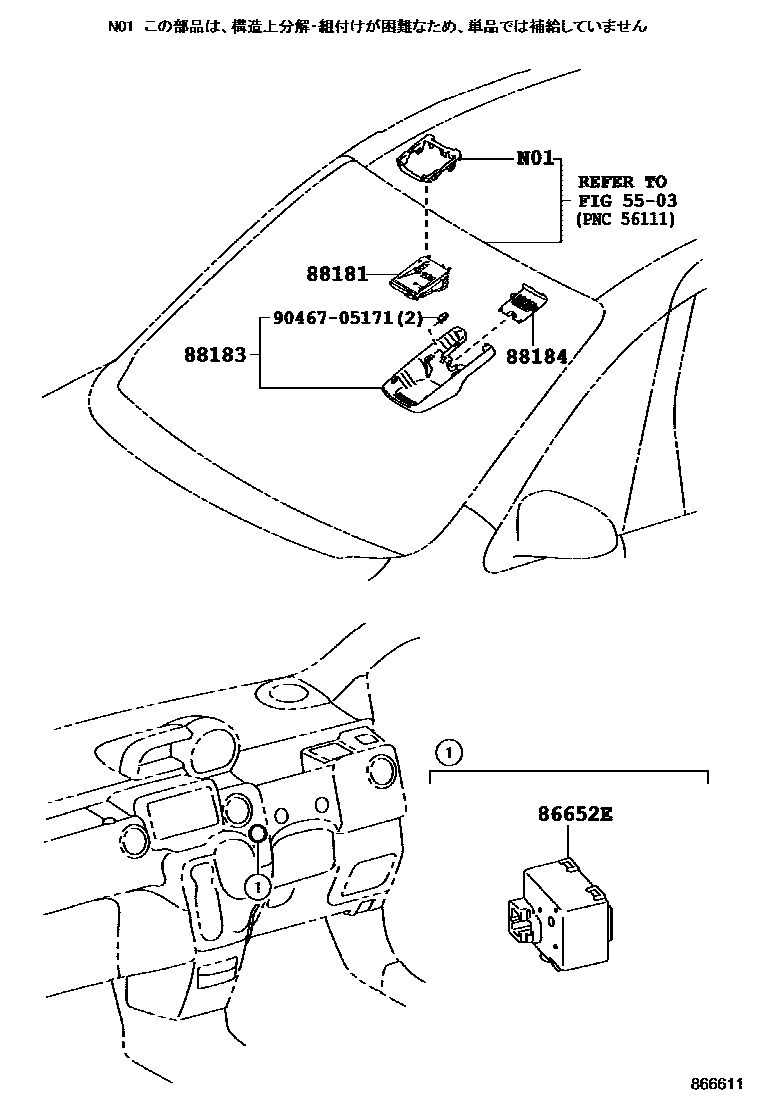

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86652EBUZZER, PRE-COLLISION CITY

main86652-50010i201607-201712

88181SENSOR, PRE-COLLISION CITY

main88181-0W080i201607-201706

main88181-52060i201712-201907

main88181-52090i201706-201712

main88181-52140i201907

88183COVER, PRE-COLLISION CITY

main88183-52050i201607-201712

main88183-52080i201712

88184COVER, PRE-COLLISION CITY, 2ND

main88184-52050i201607-201712

main88184-52080i201712

9046705171

main90467-05171

6 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota PORTE/SPADE

This section contains 6 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota PORTE/SPADE. Key components include: COWL PANEL & WINDSHIELD GLASS, BUZZER, PRE-COLLISION CITY, SENSOR, PRE-COLLISION CITY, COVER, PRE-COLLISION CITY, COVER, PRE-COLLISION CITY, 2ND.
