Toyota PORTE/SPADE — PARTIAL ENGINE ASSEMBLY

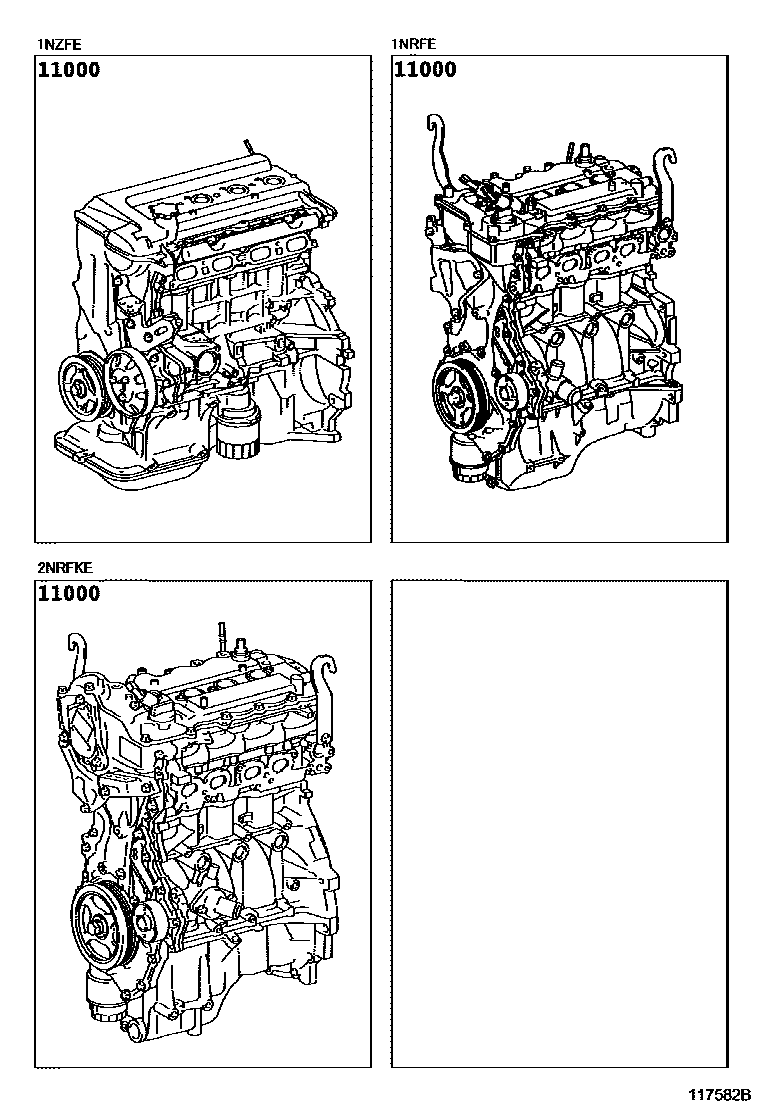

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-21851i201207-201507

main19000-47161i201301-201305

main19000-47211i201301-201305

main19000-47270i201305-201507

main19000-47280i201305-201507

main19000-47451i201507-201808

main19000-47490i201808

main19000-21D40supersedes 19000-21D50i201207-201208

main19000-21D60supersedes 19000-21D50i201208-201507

1 parts on this diagram · 1 diagram in section
