Toyota PORTE/SPADE — METER

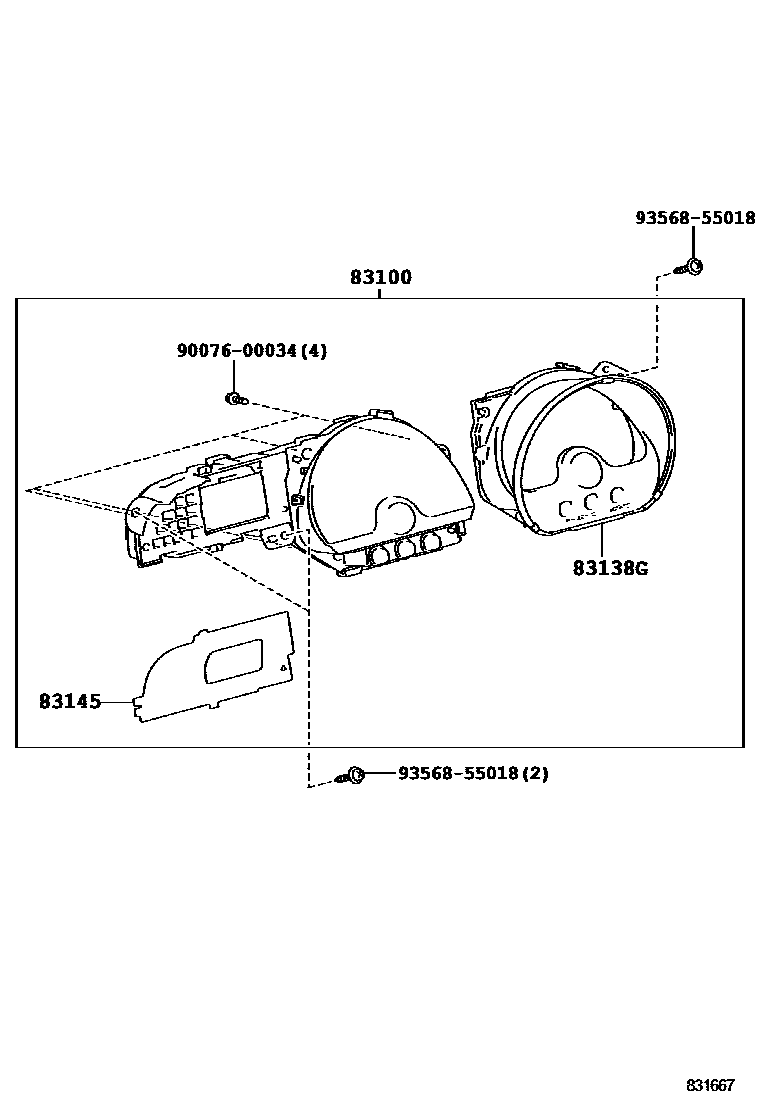

83100METER ASSY, COMBINATION
main83800-52Q60iNCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NSP140..PORTE..V;NCP141,NSP140..SPADE..CBU201207-201306
main83800-52Q61iNCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NSP140..PORTE..V;NCP141,NSP140..SPADE..CBU201307-201308
main83800-52Q62iNCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NSP140..PORTE..V;NCP141,NSP140..SPADE..CBU201309-201312
main83800-52Q63iNCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NSP140..PORTE..V;NCP141,NSP140..SPADE..CBU201401-201507
main83800-5CG90iNCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU; NCP145..PORTE..CBU; NCP145..SPADE..CBU201207-201306
main83800-5CG91iNCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU; NCP145..PORTE..CBU; NCP145..SPADE..CBU201307-201308
main83800-5CG92iNCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU; NCP145..PORTE..CBU; NCP145..SPADE..CBU201309-201312
main83800-5CG93iNCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU; NCP145..PORTE..CBU; NCP145..SPADE..CBU201401-201507
main83800-5CG80iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201207-201306
main83800-5CG81iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201307-201308
main83800-5CG82iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201309-201312
main83800-5CG83iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201401-201507
main83800-5CJ00iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201207-201306
main83800-5CJ01iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201307-201308
main83800-5CJ02iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201309-201312
main83800-5CJ03supersedes 83800-5CG83iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201401-201507
main83800-5CJ10supersedes 83800-5CG83iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201207-201306
main83800-5CJ11iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201307-201308
main83800-5CJ12iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201309-201312
main83800-5CJ13iNCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201401-201507
83138GGLASS, COMBINATION METER
83145LENS, METER, NO.1
main83831-5CJ00iNCP14#,NSP140..(F,G,X,Y)..CBU; NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU; NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU; NCP141,NSP140..PORTE..(F,G,X,Y)..CBU; NCP141,NSP140..SPADE..(F,G,X,Y)..CBU201207-201507
9007600034
main90076-00034
9356855018
main93568-55018
5 parts on this diagram · 2 diagrams in section
METER for Toyota PORTE/SPADE
This section contains 6 genuine Toyota parts for the METER system of the Toyota PORTE/SPADE. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, LENS, METER, NO.1.
