Toyota PORTE/SPADE — ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-52033i201207-201212

main78110-52100i201301-201507

main78110-52210i201602

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-52020i201207-201507

9167380620

main91673-80620

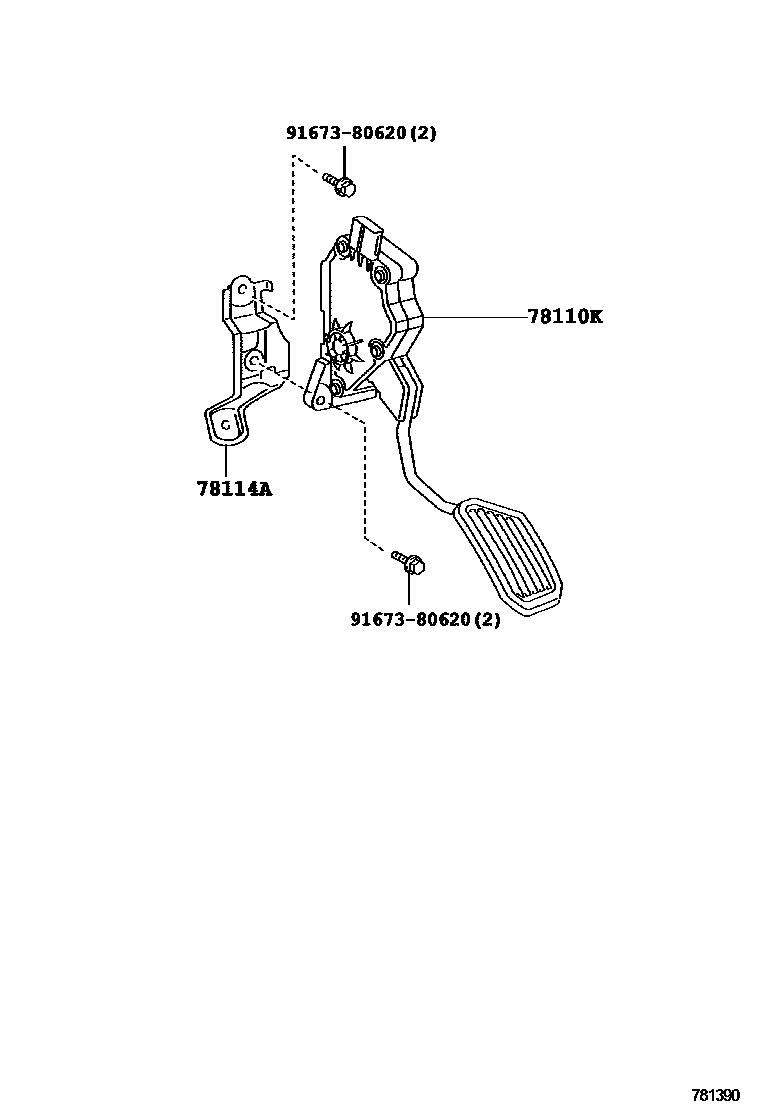

3 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota PORTE/SPADE

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota PORTE/SPADE. Key components include: ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), BRACKET, ACCELERATOR PEDAL SUPPORT.
