Toyota PLATZ — V-BELT

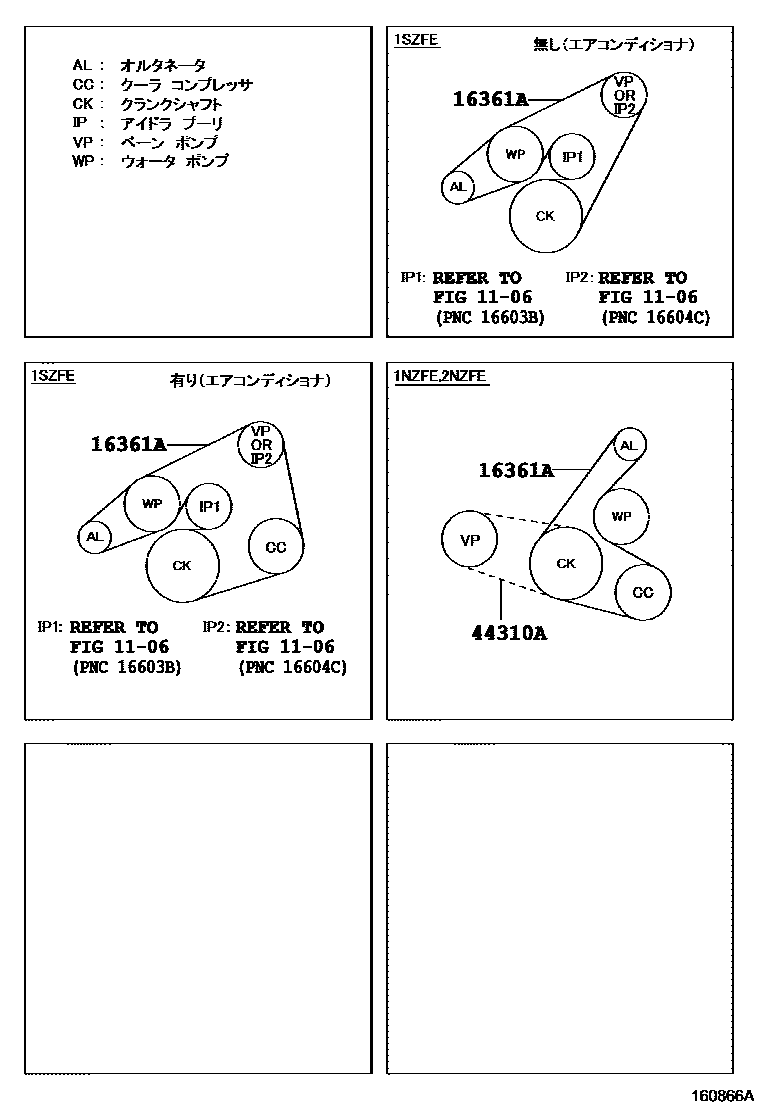

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02475i199908-200008

main90916-02476i200008-200208

main90916-02478i199908-200208

main90916-02500i199909-200208

main90916-02560i200208-200512

main90916-02561i200208-200512

L=1710

main90916-02569i200306-200512

main99364-91180i199908-199909

44310ABELT, V(FOR VANE PUMP)

main90916-02575i200208-200404

main90916-02576i200405

main99363-30850i199908-200208

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota PLATZ

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota PLATZ. Key components include: TIMING GEAR COVER & REAR END PLATE, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP).
