Toyota PLATZ — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1������-� 0004 1��� 0005 1������������ 0006 1�����-��� ���� 0007 1���,�-�,��� & ����-��

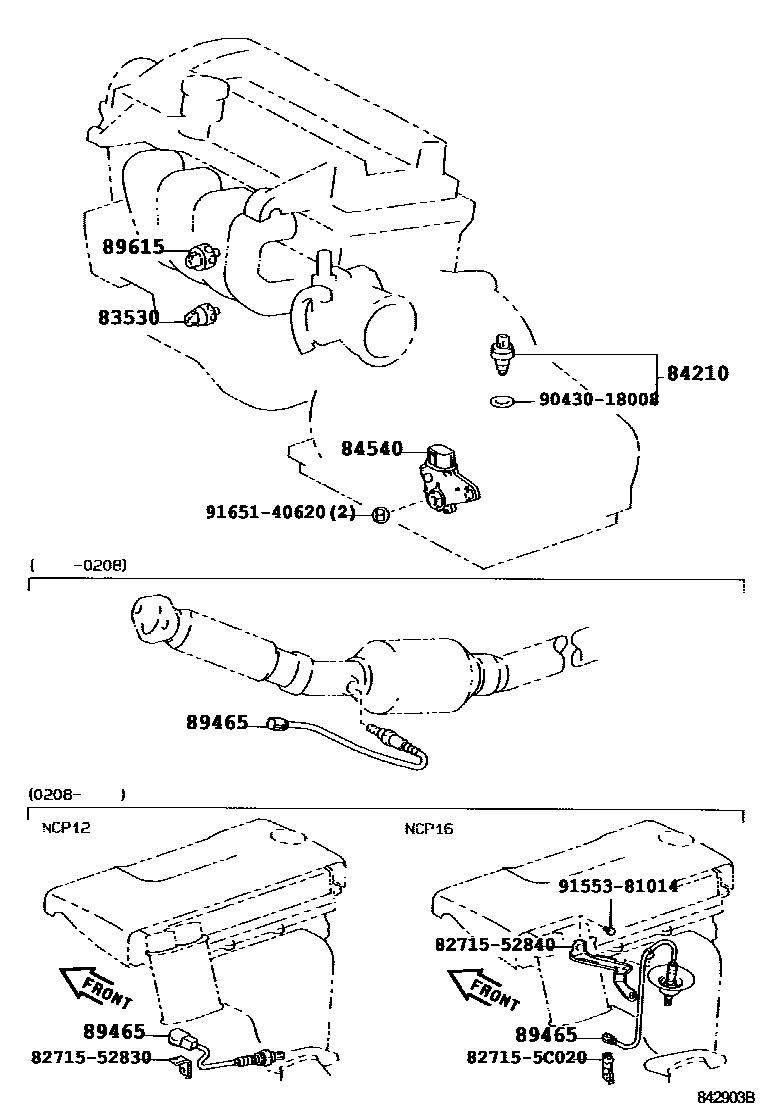

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP1#,SCP11199908-200208

main83530-60020iNCP1#,SCP11199908-200208

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNCP1#..MTM199908-200208

sub84210-52050

main84210-60030iSCP11..MTM200208-200512

84540SWITCH ASSY, NEUTRAL START

main84540-52010iNCP16,SCP11..ATM199908-200208

main84540-52050iNCP12..ATM199908-200208

89465SENSOR, OXYGEN

main89465-20810iNCP12..ATM;NCP12..MTM..F200208

main89465-41060iNCP12199908-200208

main89465-52010iSCP11199908-200112

main89465-52100iNCP16199908-200208

main89465-52170iSCP11200112-200208

main89465-52250iSCP11200212

main89465-52260iNCP16..MTM..X200208-200308

89615SENSOR, KNOCK CONTROL

main89615-22050iNCP16199908-200008

main89615-52010iSCP11199908-200208

main89615-52030iNCP1#..ATM;NCP1#..MTM..F200208

main89615-52040iNCP1#..MTM..X200208-200308

8271552830BRACKET,WIRING HARNESS CLAMP

main82715-52830

8271552840BRACKET,WIRING HARNESS CLAMP

main82715-52840

827155C020BRACKET,WIRING HARNESS CLAMP

main82715-5C020

9043018008

main90430-18008

9155381014

main91553-81014

9165140620

main91651-40620

11 parts on this diagram · 7 diagrams in section
