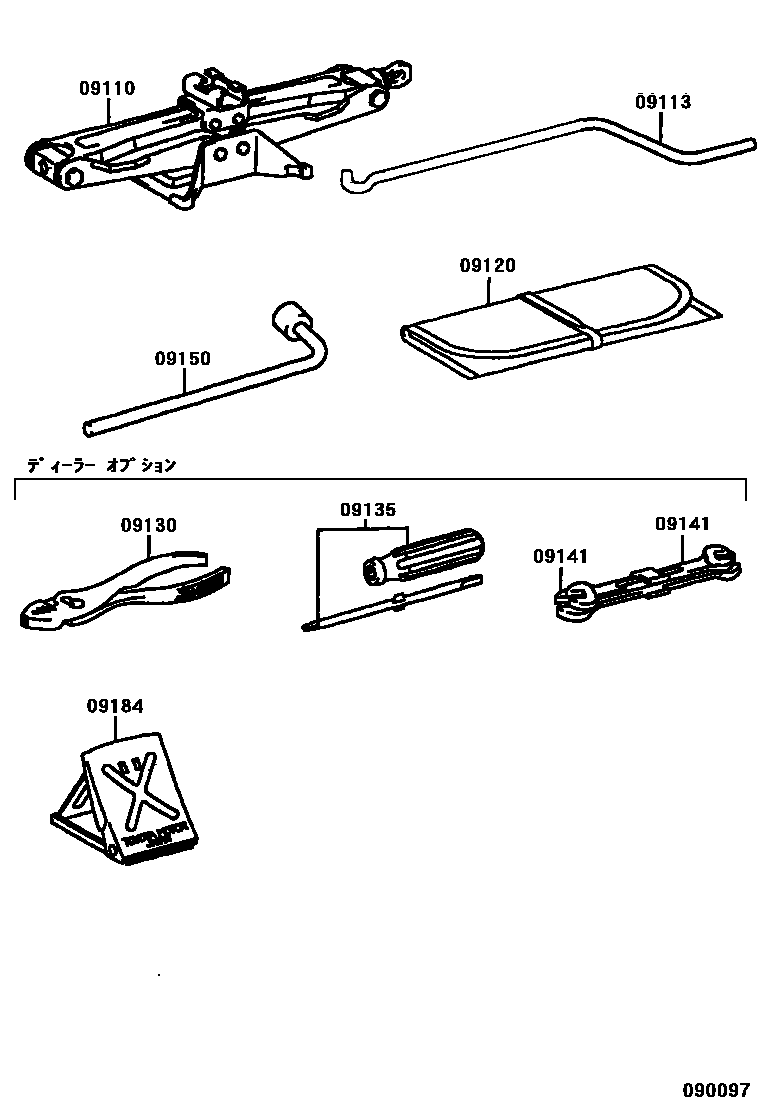

Toyota PLATZ — STANDARD TOOL

09110JACK ASSY

main09111-52010i199908-200308

09113HANDLE, JACK

main09113-52010i199908-200308

09120BAG, TOOL

main09120-10050i199908-200308

09130PLIERS

main99913-11500i199908-200308

09135DRIVER, SCREW

main99915-10700i199908-200308

09141SPANNER

main99914-10810i199908-200308

main99914-11214i199908-200308

09150WRENCH, HUB NUT BOX

main09150-40010i199908-200512

09184STOPPER, WHEEL

main09184-00010i199908-200308

8 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota PLATZ

This section contains 8 genuine Toyota parts for the STANDARD TOOL system of the Toyota PLATZ. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
