Toyota PLATZ — MUDGUARD & SPOILER
53851HPAD, FRONT SPOILER, RH
53852EPAD, FRONT SPOILER, LH
75865EPROTECTOR, ROCKER PANEL MOULDING, RH
75866EPROTECTOR, ROCKER PANEL MOULDING, LH
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76879BCLIP, REAR SPOILER, NO.2
9015960383
main90159-60383
9015960500
main90159-60500
9015960561
main90159-60561
9018306019
main90183-06019
9018906028
main90189-06028
9046718015
main90467-18015
9356056016
main93560-56016

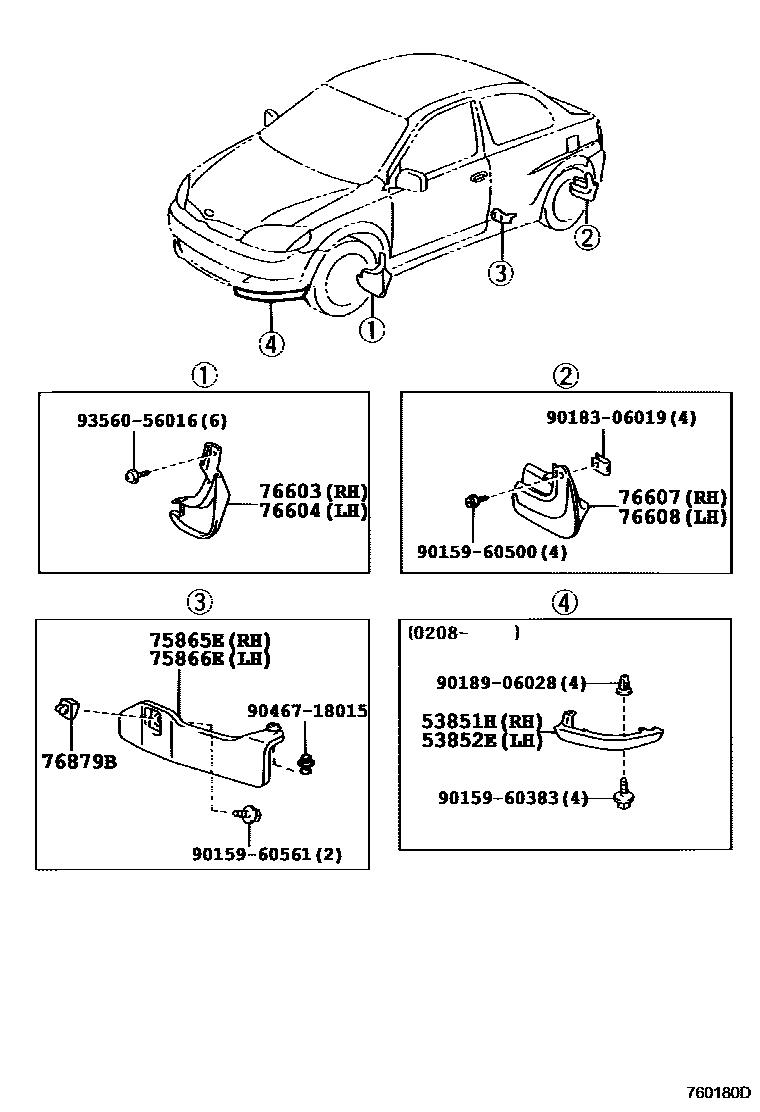

16 parts on this diagram · 1 diagram in section
MUDGUARD & SPOILER for Toyota PLATZ
This section contains 16 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota PLATZ. Key components include: PAD, FRONT SPOILER, RH, PAD, FRONT SPOILER, LH, PROTECTOR, ROCKER PANEL MOULDING, RH, PROTECTOR, ROCKER PANEL MOULDING, LH, MUDGUARD SUB-ASSY, FRONT FENDER, RH.
