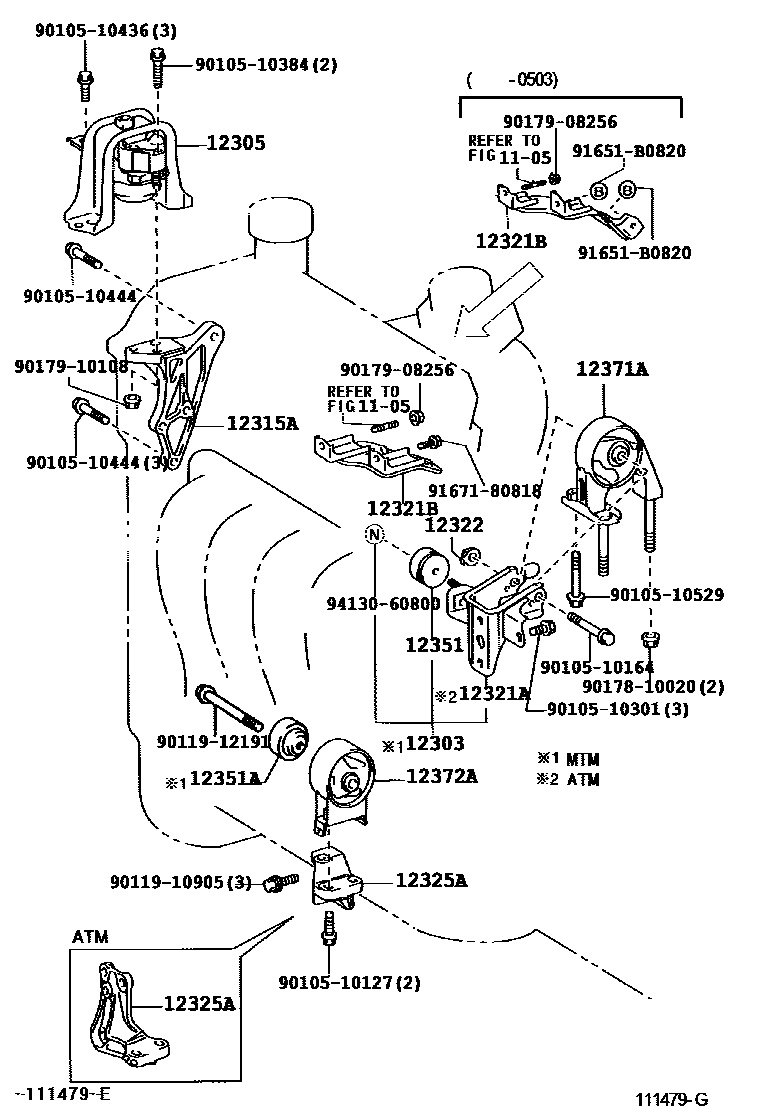

Toyota PLATZ — MOUNTING
1105CYLINDER BLOCK
12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12322BRACKET, ENGINE MOUNTING, REAR NO.2
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510127
main90105-10127
9010510164
main90105-10164
9010510301
main90105-10301
9010510384
main90105-10384
9010510436
main90105-10436
9010510444
main90105-10444
9010510529
main90105-10529
9011910905
main90119-10905
9011912191
main90119-12191
9017810020
main90178-10020
9017908256
main90179-08256
9017910108
main90179-10108
91651B0820
main91651-B0820
9167180818
main91671-80818
9413060800
main94130-60800
27 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota PLATZ
This section contains 36 genuine Toyota parts for the MOUNTING system of the Toyota PLATZ. Key components include: CYLINDER BLOCK, BRACKET SUB-ASSY, ENGINE MOUNTING, REAR, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
