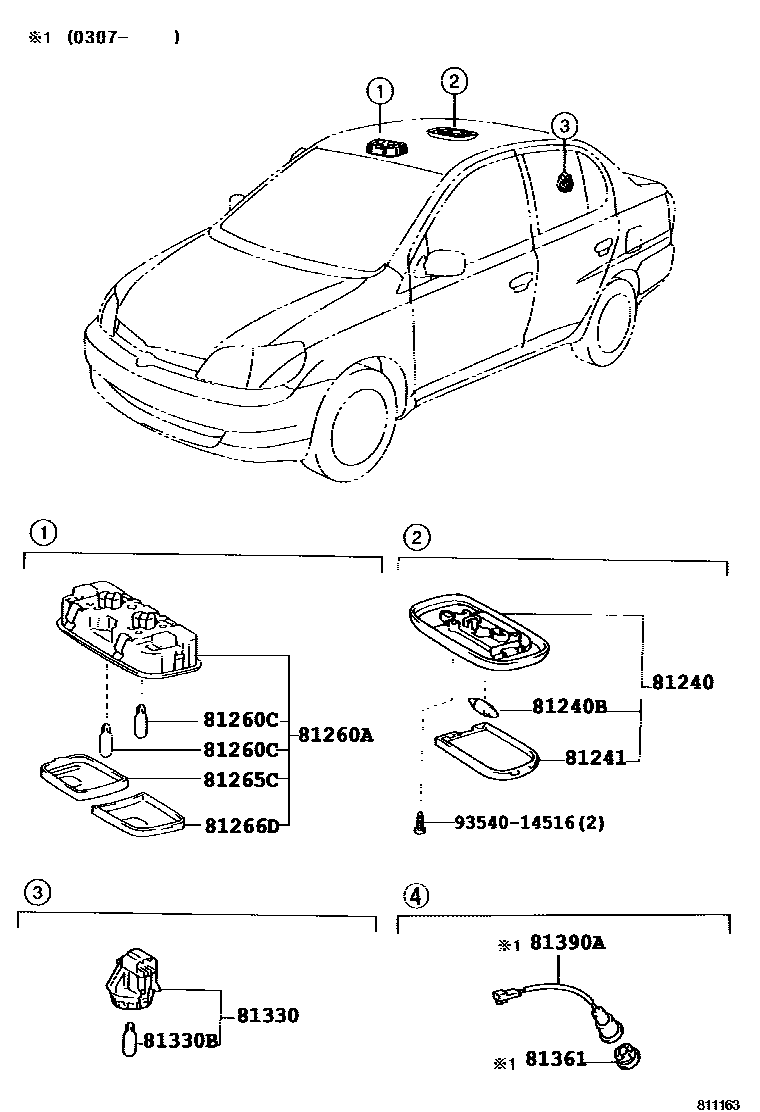

Toyota PLATZ — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-A2i200208-200512

IVORY,TRIM4#

main81240-12060-P0i199908-200208

LT.GRAY,TRIM9#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i199908-200208

81241LENS, ROOM LAMP, NO.1

main81241-12020i199908-200208

81260ALAMP ASSY, MAP

main81260-52020-A0i200208-200512

IVORY,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-11062×2i200208-200512

81265CLENS, MAP LAMP, NO.1

main81265-52020i200208-200512

81266DLENS, MAP LAMP, NO.2

main81266-52020i200208-200512

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020i199908-200208

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i199908-200208

81361LENS, STEP LAMP

main81361-52010i200307-200512

81390AHOLDER ASSY, SPOT LAMP

main81390-52010i200307-200512

9354014516

main93540-14516

12 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota PLATZ

This section contains 12 genuine Toyota parts for the INTERIOR LAMP system of the Toyota PLATZ. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, MAP, BULB(FOR MAP LAMP).
