Toyota PLATZ — INSTRUMENT PANEL & GLOVE COMPARTMENT

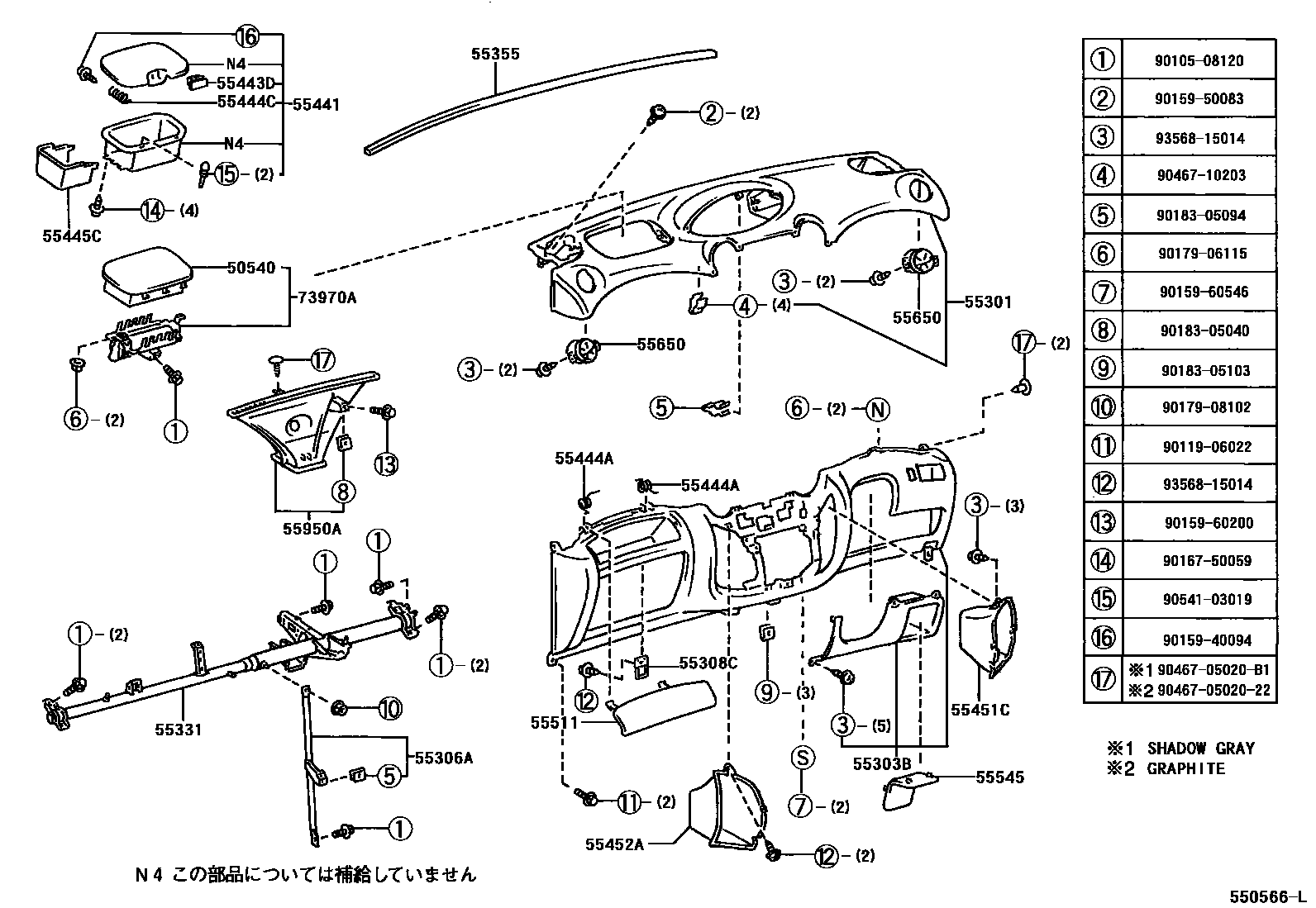

Parts diagram
50540DO0R ASSY, AIRBAG PASSENGER
main50540-52020-B1i199908-200208
AMETHYST,TRIM9#
55301PANEL SUB-ASSY, INSTRUMENT
main55301-52020-B1i199908-200208
AMETHYST,TRIM9#
main55301-52140-E0i200208-200512
SANDAL WOOD,TRIM4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
main55303-52901-B1i199908-200208
AMETHYST,TRIM9#
main55303-52901-E0i200208-200511
M. NEUTRAL BONE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-52021i199908-200208
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
main55308-52010i199908-200204
main55308-52080i200308
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-52041i199908-200208
main55330-52350i200208-200308
55355CUSHION, INSTRUMENT PANEL, NO.1
main55355-52011i199908-199909
main55355-52012i199909-200208
main55355-52150i200501
55441BOX, INSTRUMENT PANEL
main55440-52040-B1i199908-200208
AMETHYST,TRIM9#
55443DKNOB, INSTRUMENT PANEL BOX DOOR
main55443-52010-B1i199908-200208
AMETHYST,TRIM9#
55444ASPRING, INSTRUMENT PANEL BOX
main55444-52040×2i199908-200208
55444CSPRING, INSTRUMENT PANEL BOX
main55444-52080i199908-200208
55445CPLATE, INSTRUMENT PANEL BOX
main55445-52040-B1i199908-200208
AMETHYST,TRIM9#
55451CBOX, INSTRUMENT PANEL, NO.1
main55451-52020-B1i199908-200208
AMETHYST,TRIM9#
main55451-52050-E0i200208-200512
SANDAL WOOD,TRIM4#
55452ABOX, INSTRUMENT PANEL, NO.2
main55452-52020-B1i199908-200208
AMETHYST,TRIM9#
main55452-52060-E0i200208-200512
SANDAL WOOD,TRIM4#
55511DOOR, GLOVE COMPARTMENT
main55501-52020-B1i199908-200208
LT.AMETHYST,TRIM9#
main55501-52050-E0i200208-200512
MD.NEUTRAL BONE,TRIM4#
55545COVER, FUSE BOX OPENING
main55545-52010-B1i199908-200208
LT.AMETHYST,TRIM9#
main55545-52010-E0i200208-200512
MD.NEUTRAL BONE,TRIM4#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-52010-B1×2i199908-200208
AMETHYST,TRIM9#
main55650-52080-E0×2i200208-200512
SANDAL WOOD,TRIM4#
55950ANOZZLE ASSY, DEFROSTER
main55950-52020i199908-200208
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
main73970-52020-B1i199908-200112
AMETHYST,TRIM9#
main73970-52080-B1i200112-200208
AMETHYST,TRIM9#
main73970-52130-E0i200208-200512
SANDAL WOOD,TRIM4#
9010508120
main90105-08120
9011906022
main90119-06022
9015940094
main90159-40094
9015950083
main90159-50083
9015960200
main90159-60200
9015960546
main90159-60546
9016750059
main90167-50059
9017906115
main90179-06115
9017908102
main90179-08102
9018305040
main90183-05040
9018305094
main90183-05094
9018305103
main90183-05103
904670502022
main90467-0502022
9046705020B1
main90467-05020B1
9046710203
main90467-10203
9054103019
main90541-03019
9356815014
main93568-15014

36 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota PLATZ

This section contains 68 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota PLATZ. Key components include: DO0R ASSY, AIRBAG PASSENGER, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL SUB-ASSY, INSTRUMENT, PANEL SUB-ASSY, INSTRUMENT, LOWER.
