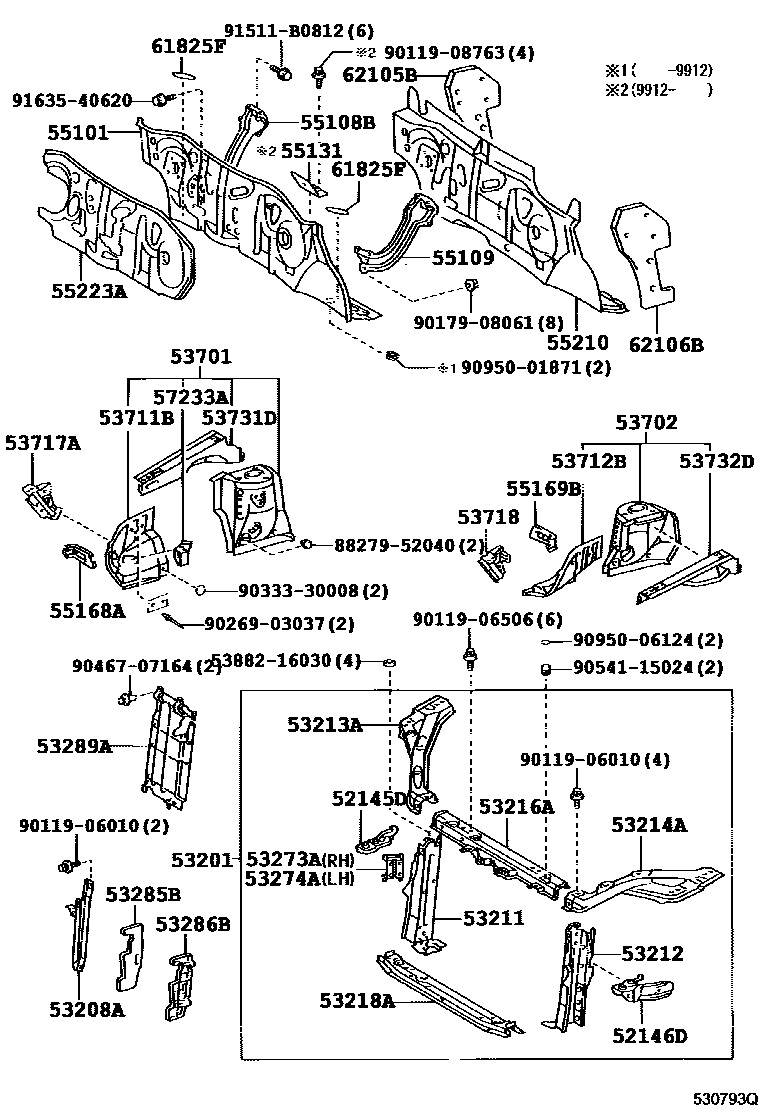

Toyota PLATZ — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-52040iNCP1#,SCP11199908-200208

main52145-52100iSCP11;NCP1#..ATM;NCP1#..MTM..F200208

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-52040iNCP1#,SCP11199908-200208

main52146-52100iNCP1#..MTM..X200208-200308

53201SUPPORT SUB-ASSY, RADIATOR

main53210-52040iNCP1#,SCP11199908-200208

main53210-52130iNCP1#,SCP11200208-200211

main53210-52131iNCP1#,SCP11200211-200512

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-52030iNCP1#,SCP11199908-199911

main53208-52031iNCP1#,SCP11199911-200208

main53208-52070iNCP1#,SCP11200208-200512

53211SUPPORT, RADIATOR, RH

main53211-52010iNCP1#,SCP11199908-200208

main53211-52040iSCP11;NCP1#..ATM;NCP1#..MTM..F200208

sub53211-52041

53212SUPPORT, RADIATOR, LH

main53212-52010iNCP1#,SCP11199908-200208

main53212-52040iNCP1#..MTM..X200208-200308

sub53212-52041

53213ASUPPORT, RADIATOR, UPPER RH

main53213-52040iNCP1#,SCP11199908-200208

main53213-52070iNCP1#..MTM..X200208-200308

53214ASUPPORT, RADIATOR, UPPER LH

main53214-52040iNCP1#,SCP11199908-200208

main53214-52070iNCP1#..MTM..X200208-200308

53216ASUPPORT, RADIATOR, UPPER

main53205-52050iNCP1#,SCP11200208-200211

main53205-52051iNCP1#..MTM..X200211-200308

main53216-52010iNCP1#,SCP11199908-200208

53218ASUPPORT, RADIATOR, LOWER

main53218-52010iSCP11;NCP1#..ATM;NCP1#..MTM..F200208

53273AREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-52010iNCP1#,SCP11199908-200208

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53273-52010iNCP1#,SCP11199908-200208

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52020iNCP1#,SCP11199908-199912

main53285-52021iNCP1#,SCP11199912-200208

main53285-52090iNCP1#..MTM..X200208-200308

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52010iNCP1#,SCP11199908-199912

main53286-52011iNCP1#,SCP11199912-200208

main53286-52060iNCP1#..MTM..X200208-200308

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-52010iNCP1#,SCP11199908-200208

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52040iNCP1#,SCP11199908-200207

main53701-52900iNCP1#,SCP11200207-200208

sub53701-52907

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52040iNCP1#,SCP11199908-200207

main53702-52900iNCP1#,SCP11200207-200208

53711BAPRON, FRONT FENDER, FRONT RH

main53711-52010iNCP1#,SCP11199908-200208

53712BAPRON, FRONT FENDER, FRONT LH

main53712-52010iNCP1#,SCP11199908-200208

53717APLATE, FENDER APRON

main53717-52020iNCP1#,SCP11199908-200208

main53717-52060iNCP1#..MTM..X200208-200308

53718PLATE, FENDER APRON, LH

main53718-52020iNCP1#,SCP11199908-200208

main53718-52070iSCP11;NCP1#..ATM;NCP1#..MTM..F200208

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-52010iNCP1#..MTM..X200208-200308

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-52010iNCP1#,SCP11199908-200208

55101PANEL SUB-ASSY, DASH

main55101-52060iNCP1#,SCP11..MTM199908-200001

sub90333-30002

main55101-52061iNCP1#,SCP11..MTM200001-200208

main55101-52062iNCP16,SCP11..MTM200308-200511

main55101-52080iNCP1#,SCP11..ATM199908-200001

sub90333-30002

main55101-52081iNCP1#,SCP11..ATM200001-200208

main55101-52082iNCP16,SCP11..ATM200308-200511

main55101-52250iNCP12..MTM200208-200308

main55101-52251iNCP12..MTM200308-200511

main55101-52260iNCP12..ATM200208-200308

main55101-52261iNCP12..ATM200308-200511

main55101-52461iNCP16,SCP11..ATM200308-200511

55108BBRACE SUB-ASSY, DASH TO FRAME, RH

main55108-52010iNCP1#,SCP11199908-200208

55109BRACE SUB-ASSY, DASH TO FRAME, LH

main55109-52010iNCP1#,SCP11199908-200204

main55109-52060iNCP1#,SCP11200204-200208

55131REINFORCEMENT, DASH PANEL

main55132-52010×2iNCP1#,SCP11199912-200108

main55132-52020×2iNCP1#,SCP11200108-200208

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52040iNCP1#,SCP11199908-200208

main55168-52090iNCP1#..MTM..X200208-200308

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52040iNCP1#,SCP11199908-200208

main55169-52090iNCP1#..MTM..X200208-200308

55210INSULATOR ASSY, DASH PANEL

main55210-52010iNCP1#,SCP11199908-199912

main55210-52011iNCP1#,SCP11199912-200208

sub55210-52012

main55210-52150iNCP1#..MTM..X200212-200308

sub55210-52151

55223AINSULATOR, DASH PANEL, OUTER

main55223-52010iNCP1#,SCP11199908-200208

57233ARETAINER, ENGINE FRONT SUPPORT, RH

main57233-52010iNCP1#,SCP11199908-200208

main57233-52011iNCP1#,SCP11200412-200511

61825FPLATE, NOISE CONTROL

main61826-47010iSCP11;NCP1#..ATM;NCP1#..MTM..F200312

62105BINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-52010iNCP1#199908-200208

main62105-52011iNCP1#..MTM..X200307-200308

62106BINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-52010iNCP1#199908-200208

main62106-52011iNCP1#..MTM..X200307-200308

5388216030PACKING, FRONT FENDER MAIN

main53882-16030

8827952040GUIDE, SKID CONTROL SENSOR

main88279-52040

9011906010

main90119-06010

9011906506

main90119-06506

9011908763

main90119-08763

9017908061

main90179-08061

9026903037

main90269-03037

9033330008

main90333-30008

9046707164

main90467-07164

9054115024

main90541-15024

9095001871

main90950-01871

9095006124

main90950-06124

91511B0812

main91511-B0812

9163540620

main91635-40620

49 parts on this diagram · 2 diagrams in section
