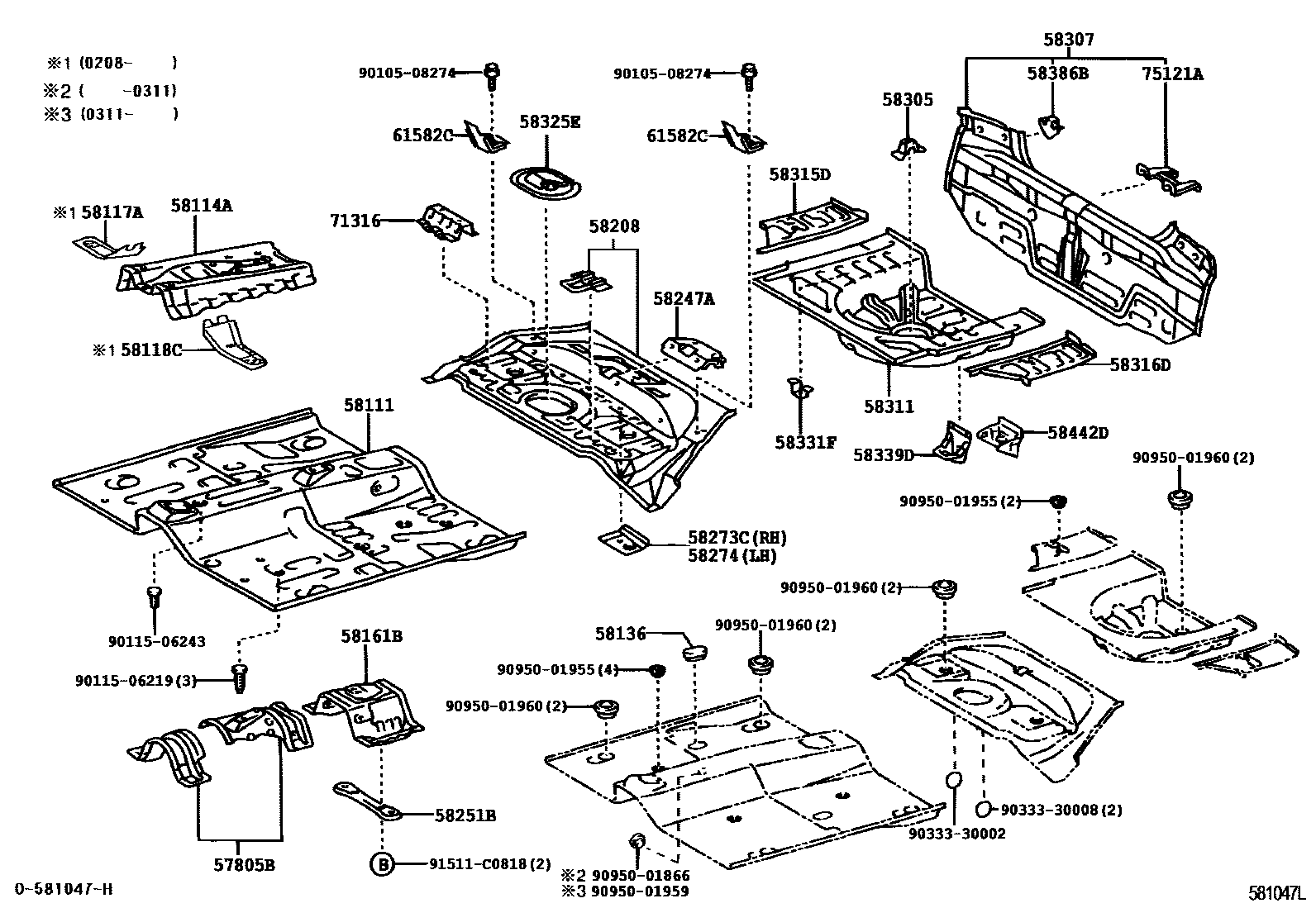

Toyota PLATZ — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-52010iSCP11199908-200008

main57805-52011iSCP11200008-200208

main57805-52021iNCP12199908-200008

main57805-52022iNCP12200008-200208

main57805-52030iNCP16200208-200308

main57805-52110iSCP11200212

main57805-52120iNCP12..ATM;NCP12..MTM..F200308

58111PAN, FRONT FLOOR

main58111-52900iNCP12,SCP11199908-200005

main58111-52901iNCP16199908-200208

main58111-52906iNCP12,SCP11200005-200208

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58103-52010iNCP12,SCP11200203-200208

main58103-52011iSCP11;NCP12..ATM;NCP12..MTM..F200308

sub58103-52013

main58103-52020iNCP16200208-200212

main58103-52021iNCP16..ATM;NCP16..MTM..F200308

sub58103-52022

main58114-52010iNCP12,SCP11199908-200203

sub58114-52011

main58114-52020iNCP16199908-200203

sub58114-52021

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-52040iNCP12,SCP11200208-200308

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-52030iNCP12,SCP11200208-200308

58136COVER, FRONT FLOOR HOLE

main58136-52010×2iSCP11;NCP1#..ATM;NCP1#..MTM..F200308

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52010iNCP12,SCP11199908-200208

58208PAN, CENTER FLOOR

main58211-52070iNCP16199908-200012

sub90333-30002

main58211-52071iNCP16200012-200208

main58211-52900iSCP11;NCP12..X200008-200208

main58211-52901iNCP12,SCP11..F200208-200212

main58211-52902iNCP12,SCP11..F200212

main58211-52903iNCP12..X200212-200308

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-52010iNCP12,SCP11..F199908-200208

main58247-52020iSCP11;NCP12..X200008-200208

58251BBRACE, FLOOR PANEL, FRONT

main58251-52010iNCP12,SCP11200208-200308

58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR

main58273-52030iNCP12,SCP11199908-200208

main58273-52031iSCP11;NCP12..ATM;NCP12..MTM..F200308

main58273-52040iNCP16199908-200012

main58273-52041iNCP16200208-200308

58274REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1

main58274-52020iNCP12,SCP11199908-200208

main58274-52021iNCP12,SCP11200212-200308

main58274-52030iNCP16200012-200208

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-10030iNCP16..ATM;NCP16..MTM..F200308

main58351-32010iNCP12,SCP11199908-200102

main58351-33010iNCP12,SCP11200208-200308

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52060iNCP1#,SCP11199908-200208

main58307-52240iNCP1#,SCP11200208-200512

main58307-52250iNCP1#,SCP11200208-200512

58311PAN, REAR FLOOR

main58311-16170iNCP16199908-200012

sub90333-30002

main58311-16171iNCP16200208-200308

main58311-52050iNCP12,SCP11200208-200308

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52050iSCP11;NCP12..ATM;NCP12..MTM..F200308

main58315-52060iNCP16..ATM;NCP16..MTM..F200308

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52050iSCP11;NCP12..ATM;NCP12..MTM..F200308

main58316-52060iNCP16..ATM;NCP16..MTM..F200308

58325ECOVER, REAR FLOOR SERVICE HOLE

main58320-52010iNCP16200112-200208

main58325-10040iNCP16199908-200112

main58325-52010iNCP12,SCP11200208-200308

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010iNCP12,SCP11199908-200208

main58331-10011×5iNCP16199908-200208

58339DBRACKET, JACK UP

main58339-52010iNCP12,SCP11199908-200208

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-52020×2iNCP1#,SCP11199908-200208

58442DCOVER, JACK

main58442-52030iNCP12,SCP11199908-200208

61582CBRACKET, REAR SEAT, NO.2

main61582-52010×2iNCP12,SCP11199908-200208

71316BRACKET, REAR SEAT SUPPORT

main71316-52060×2iNCP12,SCP11199908-200208

sub71307-52011

main71316-52061×2iNCP12,SCP11200208-200308

75121ABRACKET, REAR LICENSE PLATE

main75121-24020iNCP1#,SCP11199908-200208

9010508274

main90105-08274

9011506219

main90115-06219

9011506243

main90115-06243

9033330002

main90333-30002

9033330008

main90333-30008

9095001866

main90950-01866

9095001955

main90950-01955

9095001959

main90950-01959

9095001960

main90950-01960

91511C0818

main91511-C0818

35 parts on this diagram · 2 diagrams in section
