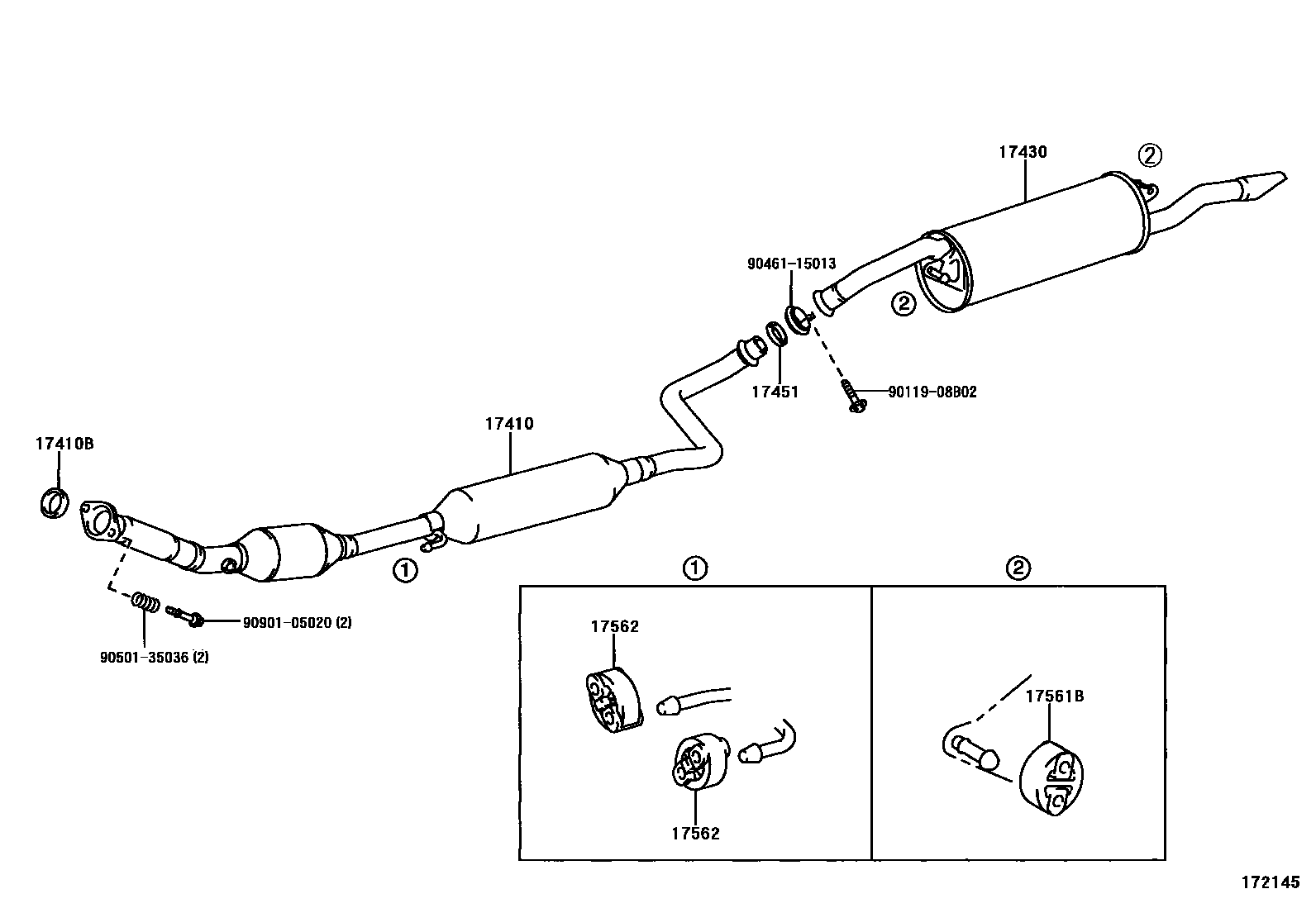

Toyota PLATZ — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
9011908B02
main90119-08B02
9046115013
main90461-15013
9050135036
main90501-35036
9090105020
main90901-05020
10 parts on this diagram · 4 diagrams in section
EXHAUST PIPE for Toyota PLATZ
This section contains 22 genuine Toyota parts for the EXHAUST PIPE system of the Toyota PLATZ. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, GASKET, EXHAUST PIPE, CENTER, PIPE ASSY, EXHAUST, TAIL.
