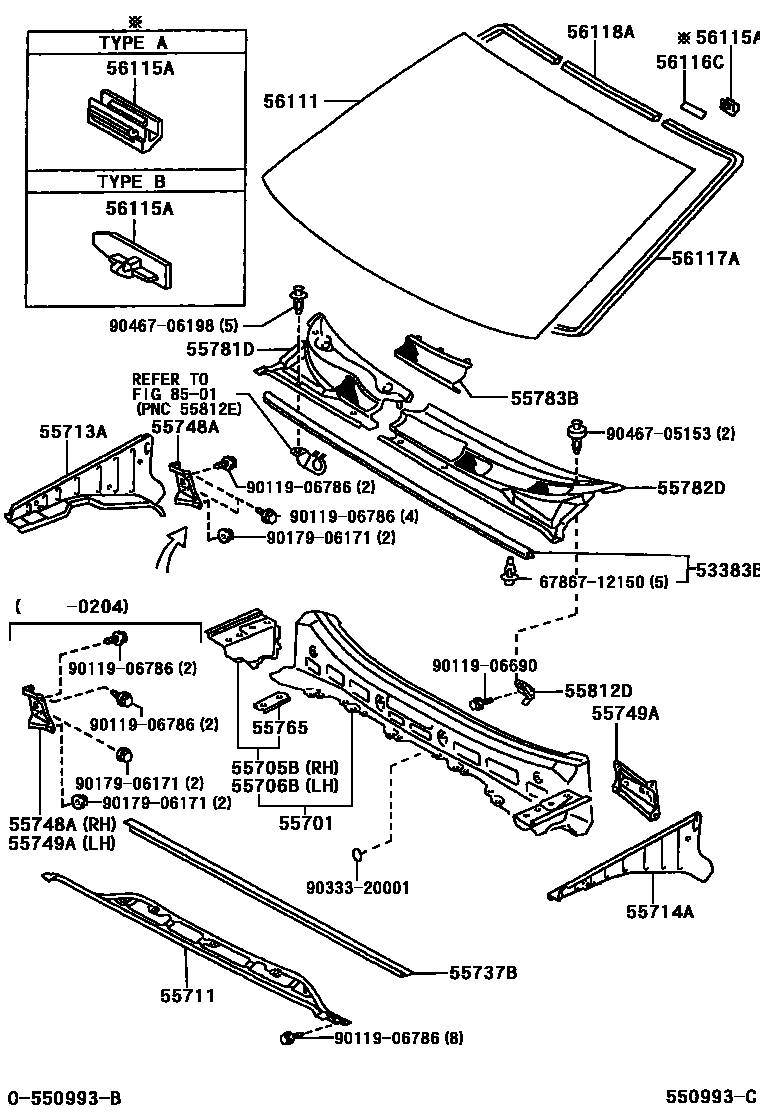

Toyota PLATZ — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55748ABRACE, COWL TOP INNER TO PILLAR
55749ABRACE, COWL TOP INNER TO PILLAR, LH
55765BRACKET, HOOD DAMPER MOUNTING
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55812DBRACKET, COWL VENTILATOR
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
8501WINDSHIELD WIPER
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9011906690
main90119-06690
9011906786
main90119-06786
9017906171
main90179-06171
9033320001
main90333-20001
9046705153
main90467-05153
9046706198
main90467-06198
28 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota PLATZ
This section contains 28 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota PLATZ. Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, PANEL, COWL TOP, OUTER.
