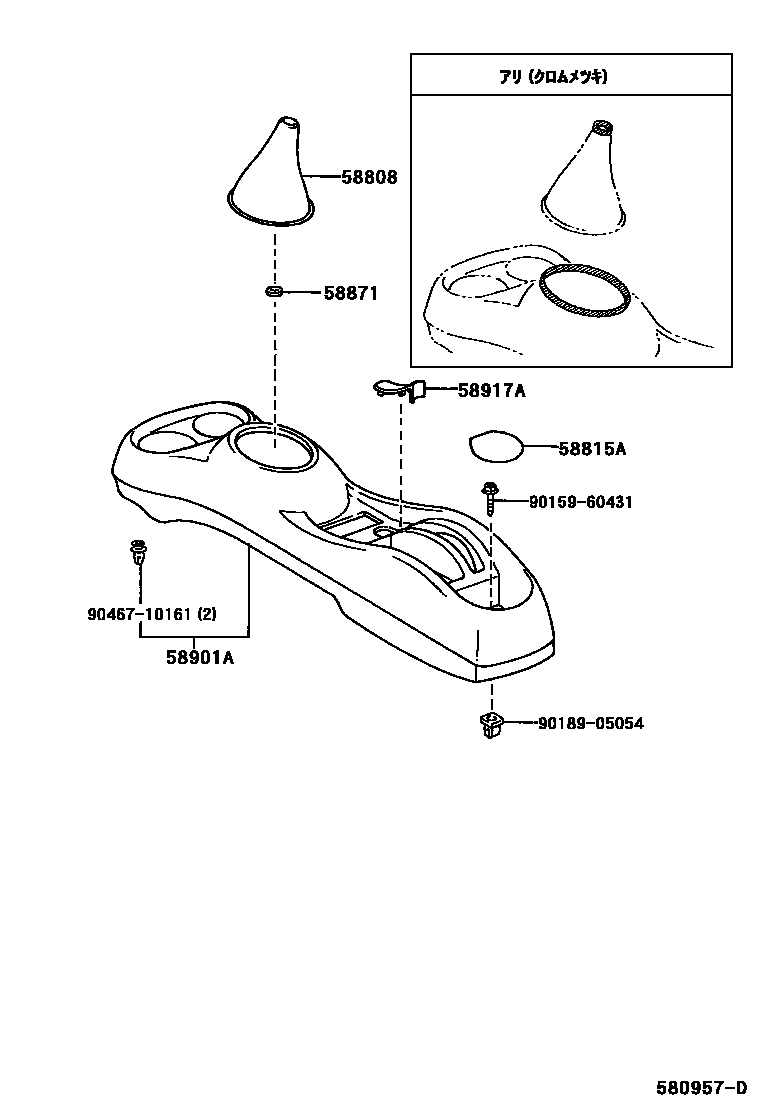

Toyota PLATZ — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52020-B1iNCP1#,SCP11..MTM199908-200208

MD.CHARCOAL,TRIM9#

main58808-52020-E0iNCP1#,SCP11..MTM..F200208-200512

SANDAL WOOD,TRIM4#

main58808-52040-E0iNCP12..MTM..X;NCP16,SCP11..MTM200208-200212

main58808-52050-E0iNCP12..MTM..X;NCP16,SCP11..MTM200212-200512

58815ACARPET, CONSOLE BOX

main58815-52010iNCP1#,SCP11199908-200208

58871CUSHION, CONSOLE BOX

main58871-20060iNCP12..MTM..X;NCP16,SCP11..MTM200208-200308

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-52010-B1iNCP1#,SCP11199908-200208

LT.AMETHYST,TRIM9#

main58911-52010-E0iNCP1#,SCP11..F200208-200512

SANDAL WOOD,TRIM4#

main58911-52020-E0iNCP12..X;NCP16,SCP11200208-200512

58917ACOVER, CONSOLE BOX, REAR

main58917-52010-B1iNCP1#,SCP11199908-200208

LT.AMETHYST,TRIM9#

main58917-52010-E0iNCP1#,SCP11200208-200512

SANDAL WOOD,TRIM4#

9015960431

main90159-60431

9018905054

main90189-05054

9046710161

main90467-10161

8 parts on this diagram · 1 diagram in section
