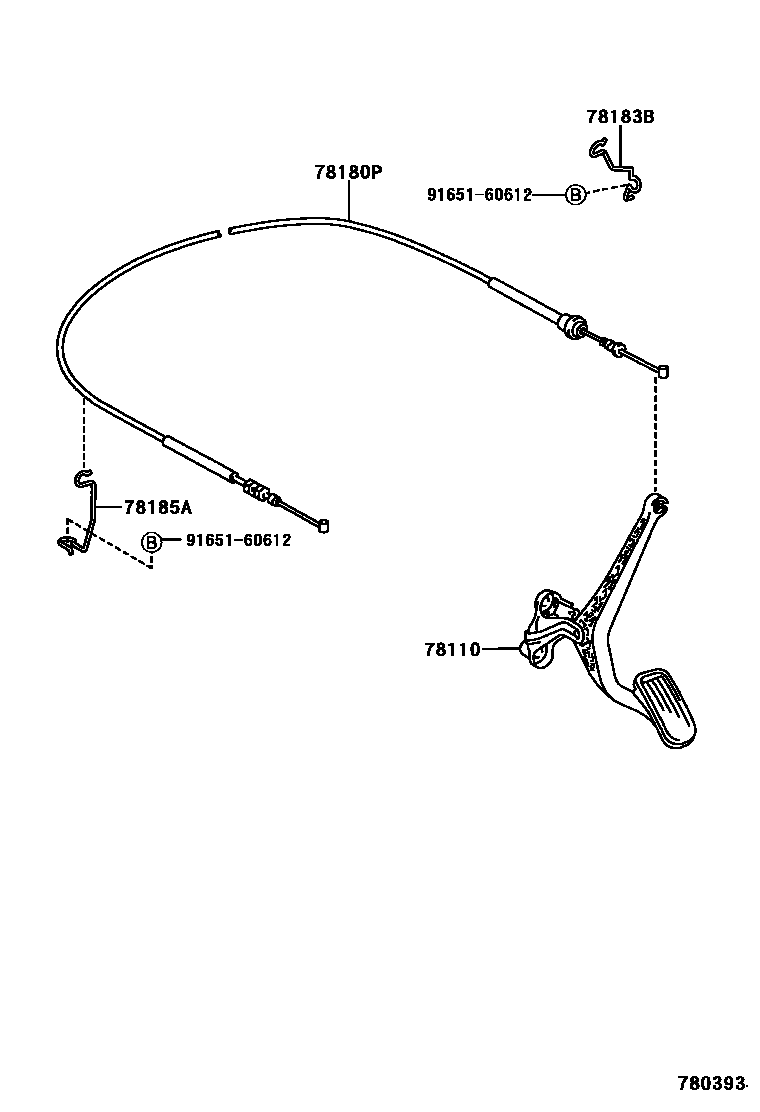

Toyota PLATZ — ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-52050iNCP1#,SCP11199908-200208

main78120-52110iSCP11;NCP1#..ATM;NCP1#..MTM..F200403

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52030iNCP1#199908-200208

main78180-52060iSCP11199908-200208

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-52020iSCP11199908-200208

main78183-52080iNCP1#..ATM;NCP1#..MTM..F200208

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-52040iSCP11199908-200006

main78183-52041iSCP11200006-200111

main78183-52130iSCP11200111-200208

9165160612

main91651-60612

5 parts on this diagram · 2 diagrams in section
