Toyota PLATZ — ABS & VSC

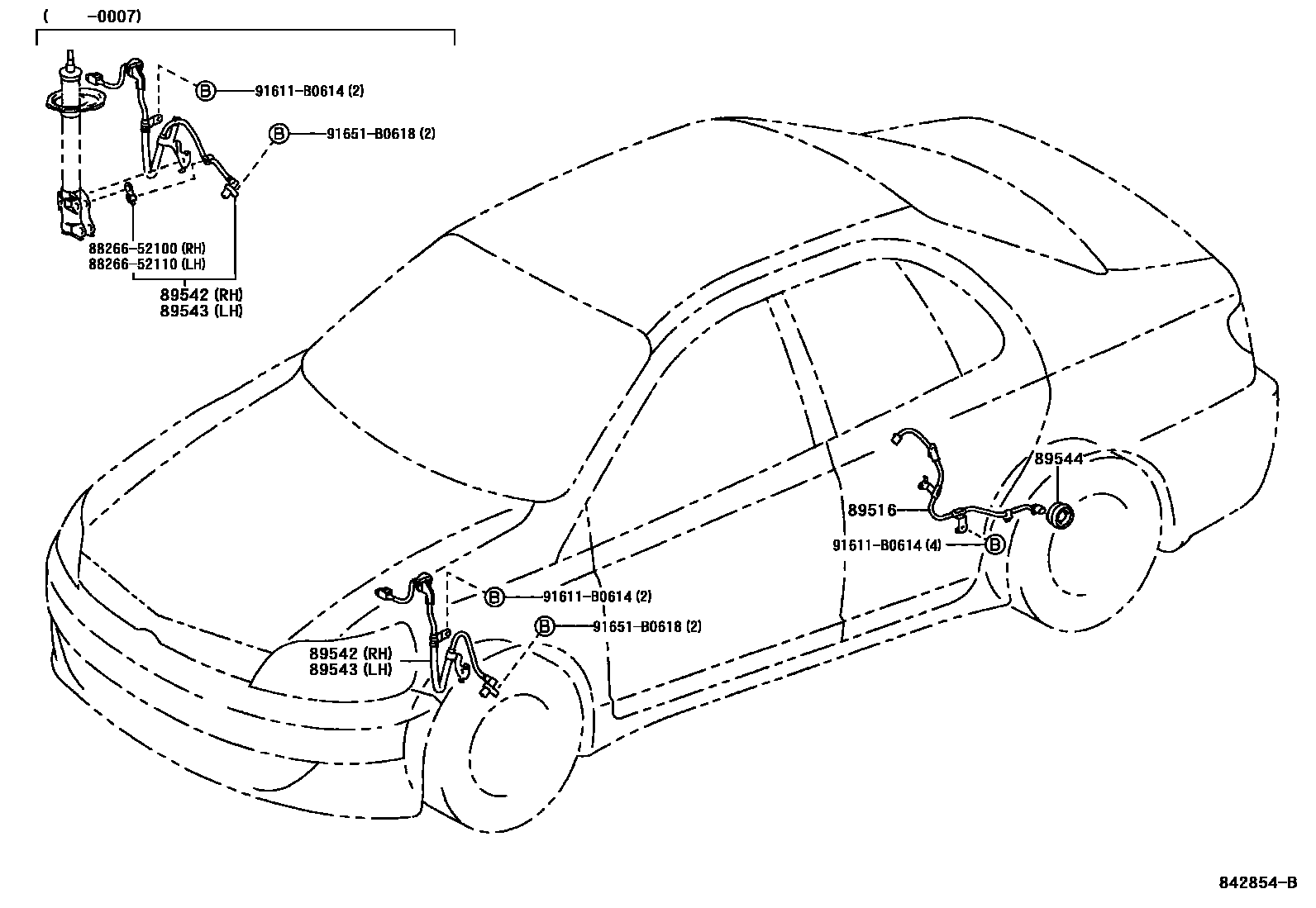

Parts diagram

89516WIRE, SKID CONTROL SENSOR

main89516-52010i200308

main89516-52020i200208-200308

89542SENSOR, SPEED, FRONT RH

main04895-52010i199908-200007

main89542-52010i200007-200208

89543SENSOR, SPEED, FRONT LH

main04895-52020i199908-200007

main89543-52010i200007-200208

89544SENSOR, SKID CONTROL

main89544-12010×2i200301-200511

main89544-52010×2i200208-200301

main89544-52020×2i199908-200208

main89544-52030×2i200301-200511

8826652100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52100

8826652110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52110

91611B0614

main91611-B0614

91651B0618

main91651-B0618

8 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota PLATZ

This section contains 13 genuine Toyota parts for the ABS & VSC system of the Toyota PLATZ. Key components include: SENSOR, DECELERATION, WIRE, SKID CONTROL SENSOR, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SKID CONTROL.
