Toyota PIXIS VAN — WIRELESS DOOR LOCK

8202WIRING & CLAMP

→ Go to FIG 82-02

85980ERELAY ASSY, DOOR CONTROL

main85980-B5010i201112

89740COMPUTER ASSY, DOOR CONTROL W/RECEIVER

main89740-B5011i201112-201711

9155180814

main91551-80814

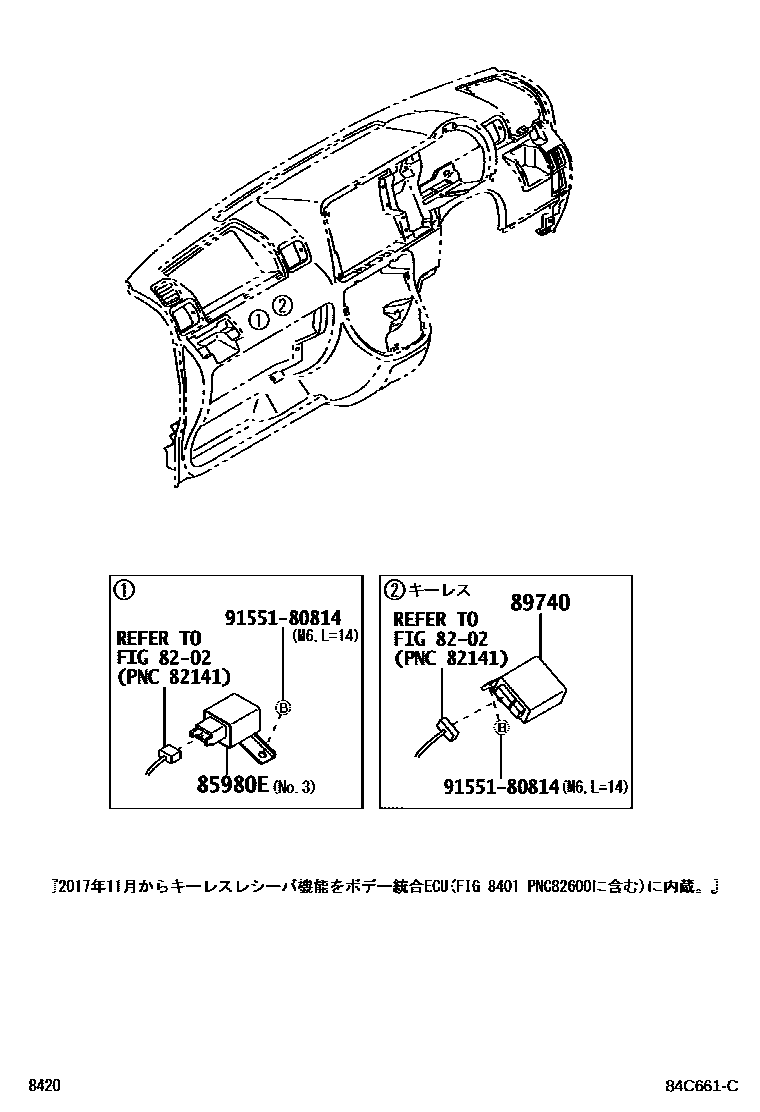

4 parts on this diagram · 1 diagram in section

WIRELESS DOOR LOCK for Toyota PIXIS VAN

This section contains 4 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota PIXIS VAN. Key components include: WIRING & CLAMP, RELAY ASSY, DOOR CONTROL, COMPUTER ASSY, DOOR CONTROL W/RECEIVER.
