Toyota PIXIS VAN — WINDSHIELD WASHER

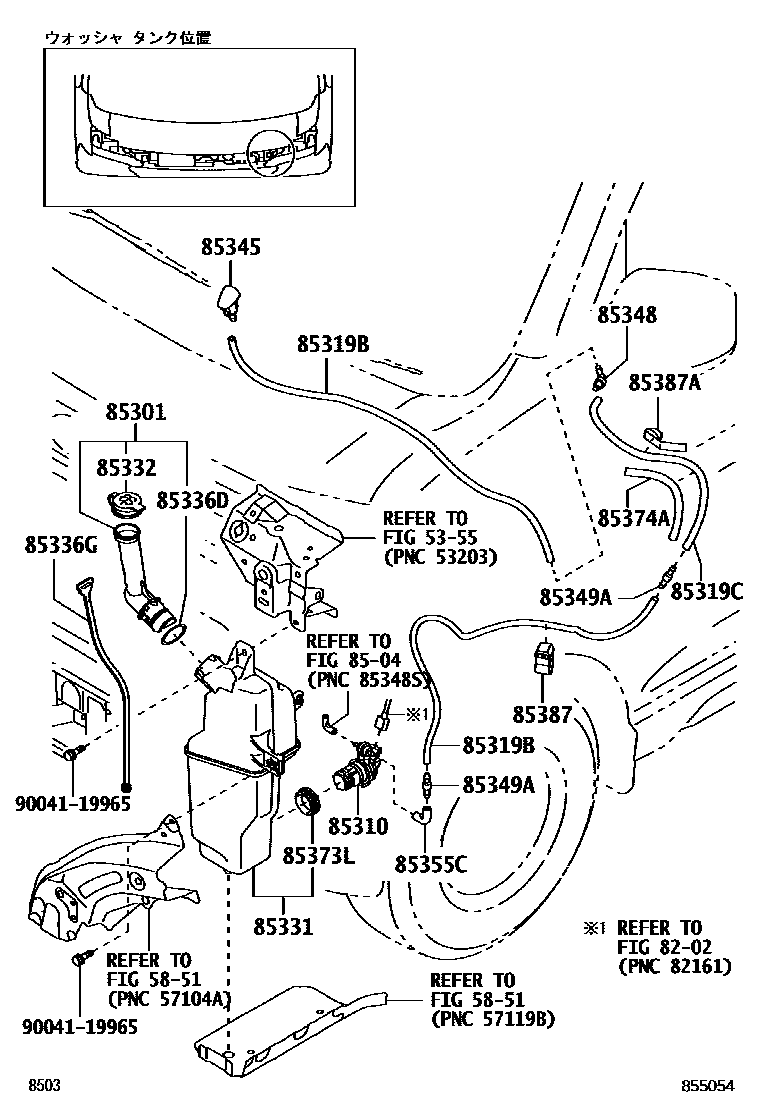

Parts diagram

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

8202WIRING & CLAMP

→ Go to FIG 82-02

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-B5010i202112

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-B5010i202112

85319BHOSE, WINDOW WASHER

main85376-87202×2i202112

85319CHOSE, WASHER

main85343-97401i202112

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-B5040i202112

85332CAP, WINDSHIELD WASHER JAR

main85332-B2040i202112

85336DPACKING, WINDSHIELD WASHER JAR

main85336-B2060i202112

85336GGAGE, WATER LEVEL

main85313-B5010i202112

85345NOZZLE, WINDSHIELD WASHER

main85381-B5100i202112

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-B2030i202112

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-87201×2i202112

85355CJAR, WASHER, C

main85355-87701i202112

85373LGROMMET, WASHER

main85373-97202i202112

85374APROTECTOR, WASHER HOSE

main85372-B5010i202112

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-2C150i202112

85387ACLAMP, WASHER, NO.2

main82711-B2010i202112

9004119965

main90041-19965

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PIXIS VAN

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PIXIS VAN. Key components include: FRONT FENDER APRON & DASH PANEL, FRONT FLOOR PANEL & FRONT FLOOR MEMBER, WIRING & CLAMP, REAR WASHER, INLET SUB-ASSY, WASHER.
