Toyota PIXIS VAN — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

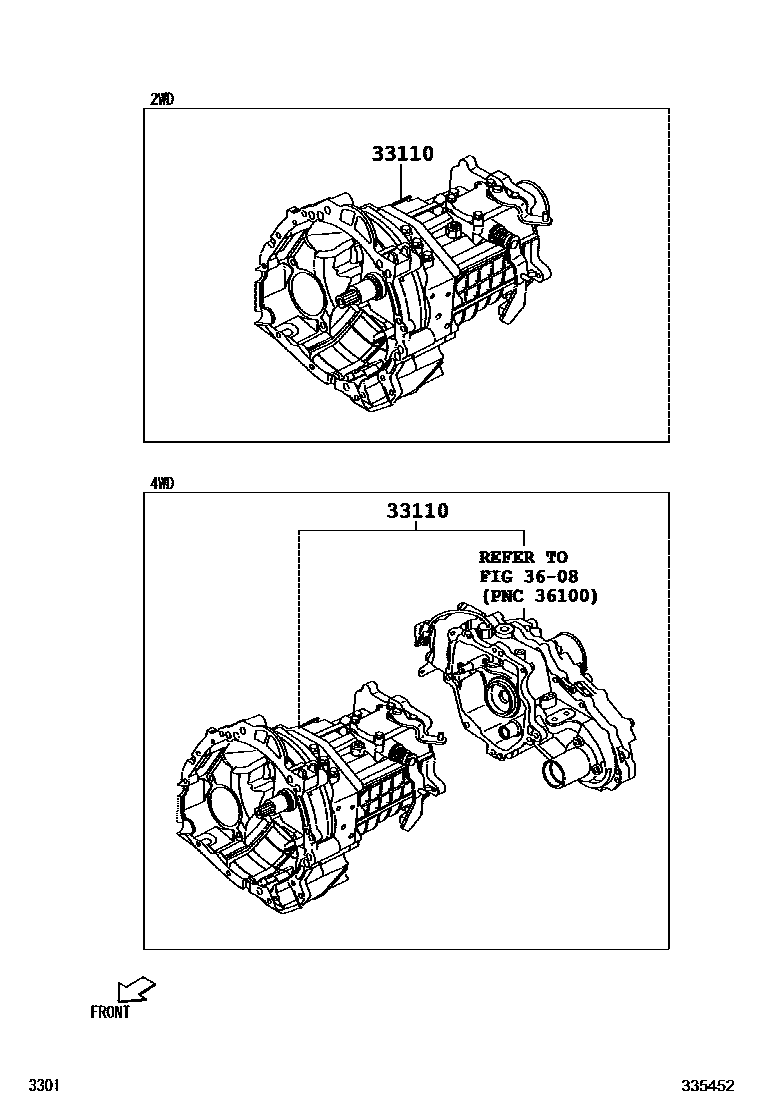

Parts diagram

33110TRANSMISSION ASSY, MANUAL

main33010-B5050i201112-201504

main33010-B5060i201112-201504

main33010-B5140i201504-201711

main33010-B5141i201711

main33010-B5150i201504-201711

main33010-B5151i201711

main33030-B5100i201112-201504

main33030-B5110i201112-201504

main33030-B5270i201504-201711

main33030-B5271i201711

main33030-B5280i201504-201711

main33030-B5281i201711

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

2 parts on this diagram · 2 diagrams in section

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM) for Toyota PIXIS VAN

This section contains 2 genuine Toyota parts for the TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM) system of the Toyota PIXIS VAN. Key components include: TRANSMISSION ASSY, MANUAL, TRANSFER ASSEMBLY & GASKET KIT.
