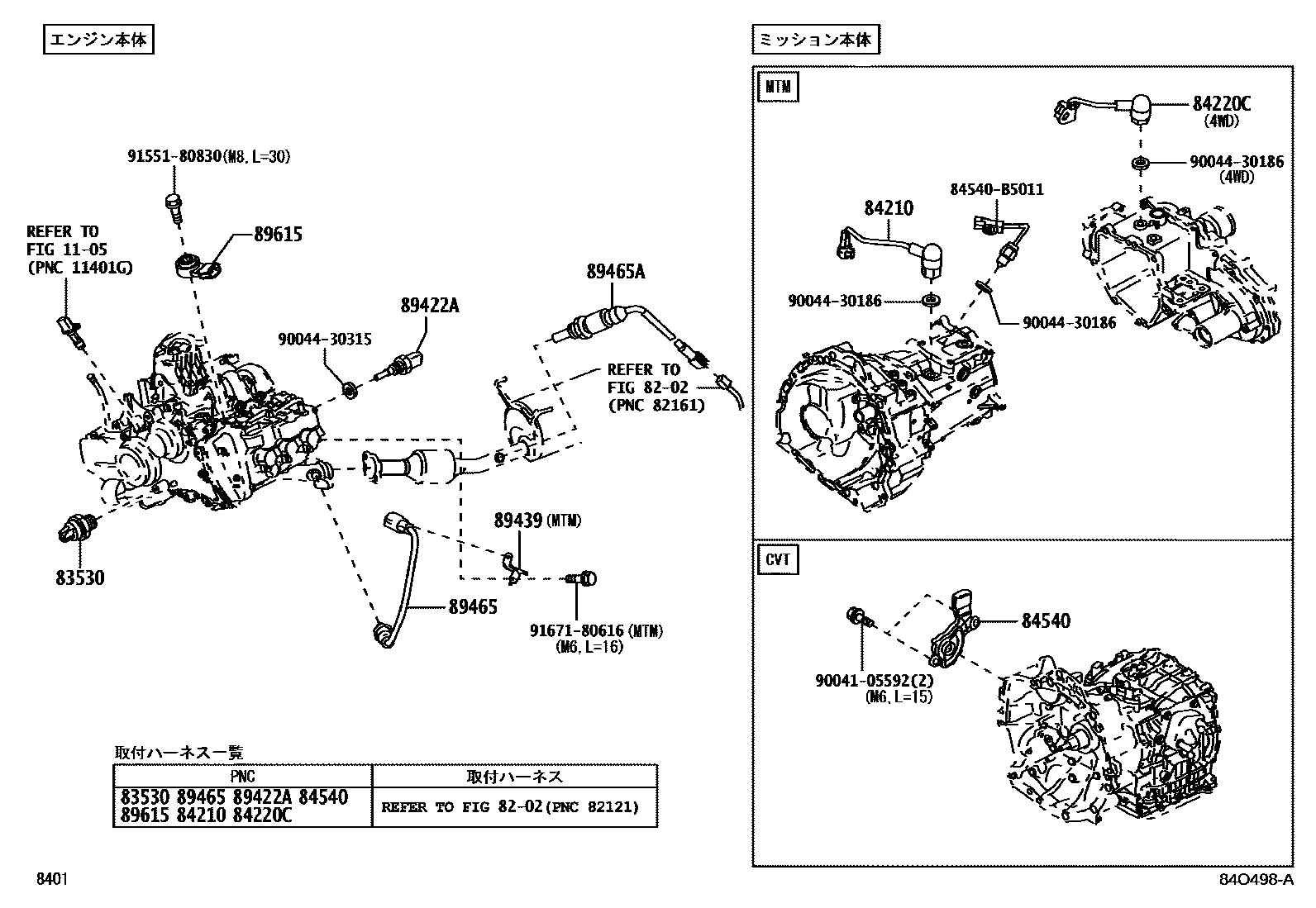

Toyota PIXIS VAN — SWITCH & RELAY & COMPUTER
1105CYLINDER BLOCK
8202WIRING & CLAMP
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR
84540SWITCH ASSY, NEUTRAL START
89422ASENSOR, WATER TEMPERATURE
89439BRACKET, SENSOR
89615SENSOR, KNOCK CONTROL
84540B5011SWITCH ASSY, NEUTRAL START
main84540-B5011
9004105592
main90041-05592
9004430186
main90044-30186
9004430315
main90044-30315
9155180830
main91551-80830
9167180616
main91671-80616
17 parts on this diagram · 9 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota PIXIS VAN
This section contains 104 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota PIXIS VAN. Key components include: CYLINDER BLOCK, RELAY ASSY, STARTER, SENSOR ASSY, BATTERY CURRENT, STEERING COLUMN & SHAFT, PARKING BRAKE & CABLE.
