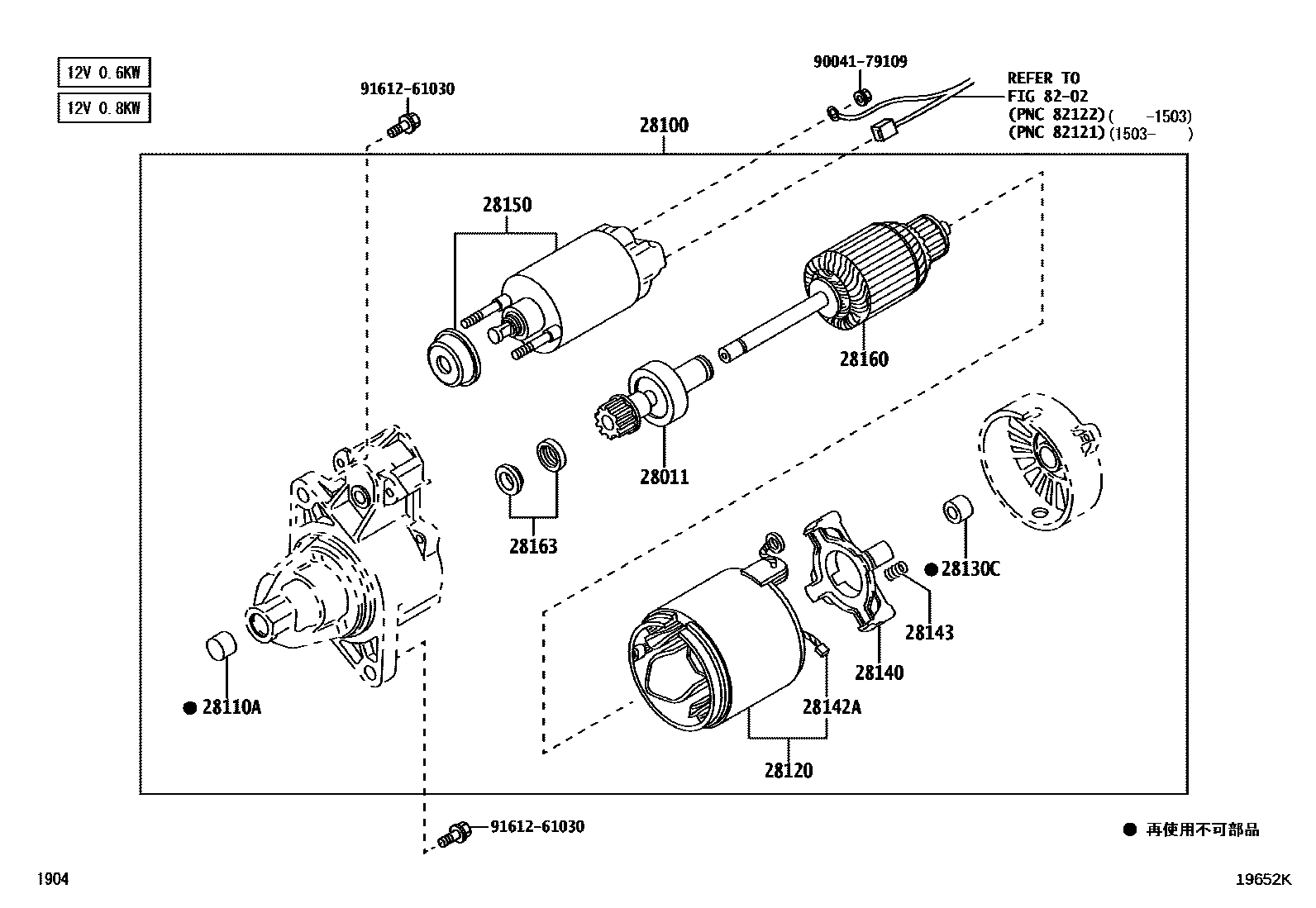

Toyota PIXIS VAN — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28110ABEARING(FOR STARTER HOUSING)
28120YOKE ASSY, STARTER
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28163NUT OR COLLAR, PINION STOP, STARTER
8202WIRING & CLAMP
9004179109
main90041-79109
9161261030
main91612-61030
15 parts on this diagram · 5 diagrams in section
STARTER for Toyota PIXIS VAN
This section contains 29 genuine Toyota parts for the STARTER system of the Toyota PIXIS VAN. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, BUSH OR BEARING, PLANET CARRIER SHAFT, CLUTCH SUB-ASSY, STARTER CENTER BEARING.
