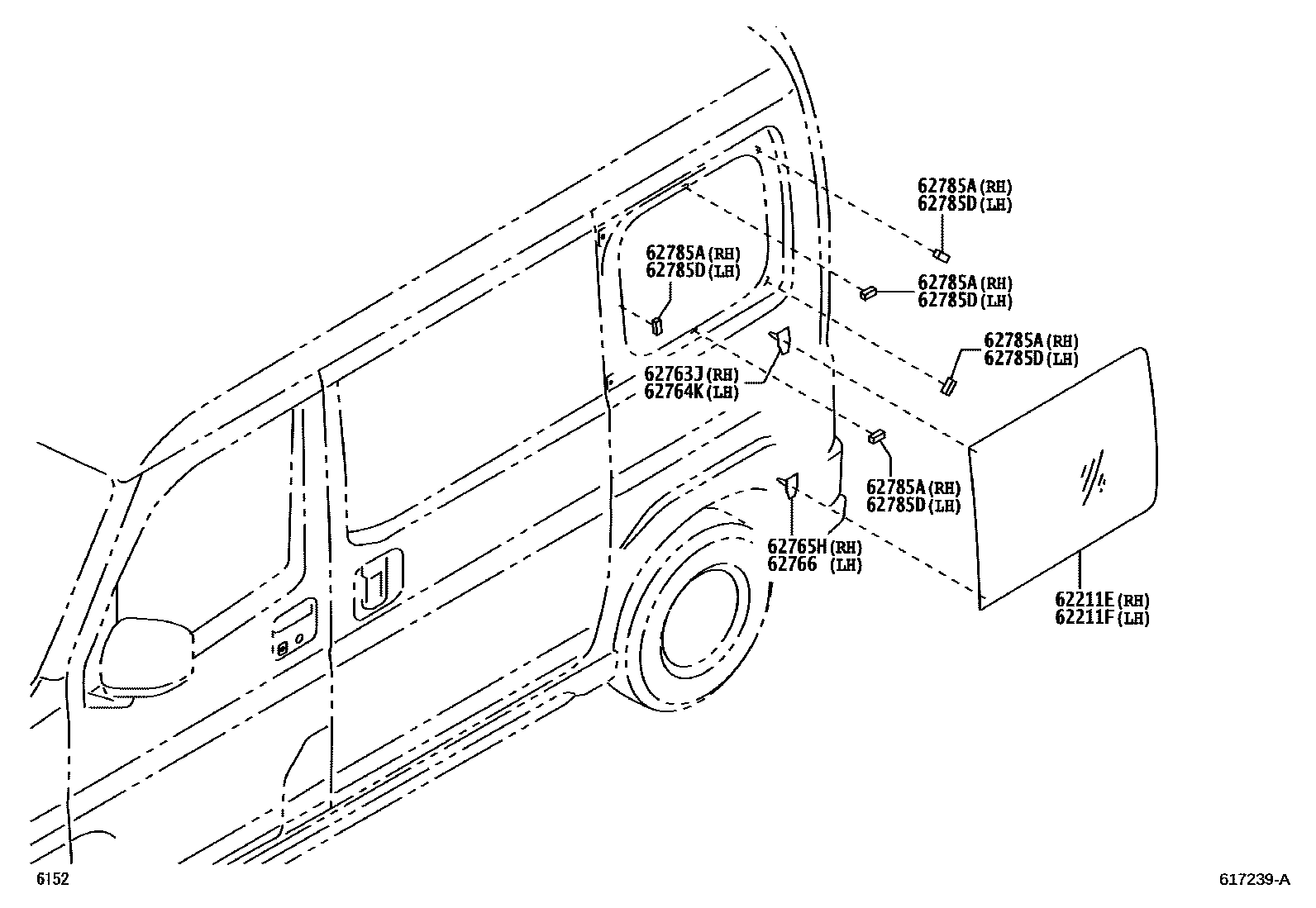

Toyota PIXIS VAN — SIDE WINDOW

62211EGLASS, SIDE WINDOW, REAR RH

main62711-B5090supersedes 62711-B5080i202112

62211FGLASS, SIDE WINDOW, REAR LH

main62712-B5090supersedes 62712-B5080i202112

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-B2040i202112

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-B2040i202112

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-B5010i202112

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-B5010i202112

62785ASPACER, QUARTER WINDOW GLASS

main62785-B2030×5i202304

main62785-B4010×5i202112-202303

62785DSPACER, QUARTER WINDOW GLASS

main62785-B2030×5i202304

main62785-B4010×5i202112-202303

8 parts on this diagram · 1 diagram in section

SIDE WINDOW for Toyota PIXIS VAN

This section contains 8 genuine Toyota parts for the SIDE WINDOW system of the Toyota PIXIS VAN. Key components include: GLASS, SIDE WINDOW, REAR RH, GLASS, SIDE WINDOW, REAR LH, RETAINER, QUARTER WINDOW GLASS, UPPER, RETAINER, QUARTER WINDOW GLASS, LOWER.
