Toyota PIXIS VAN — ROOF PANEL & BACK PANEL

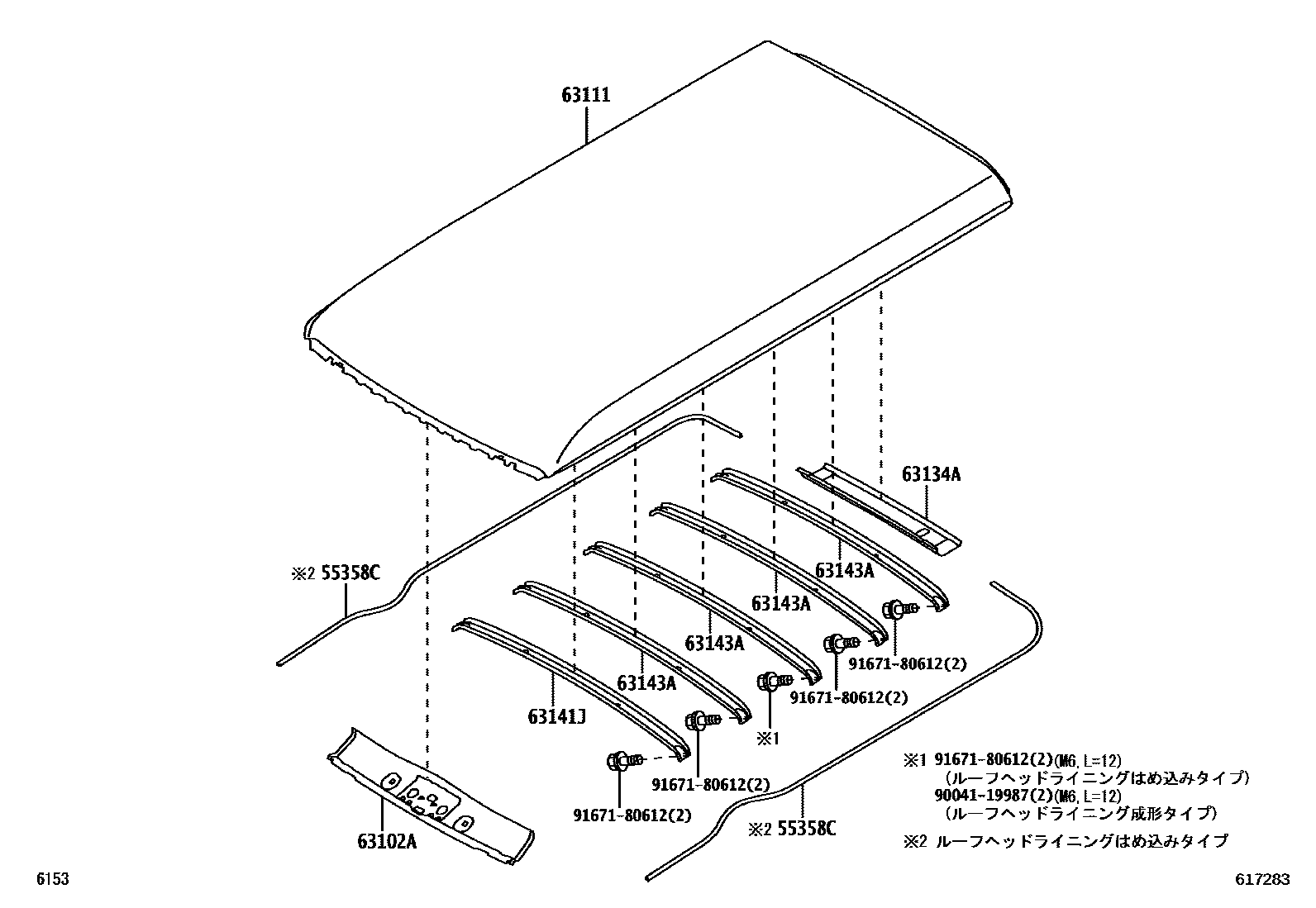

Parts diagram

55358CPROTECTOR, EDGE

main63391-B5050-B0i202112

LT.GRAY,TRIM1#

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-B5090i202112

main63102-B5100i202112

63111PANEL, ROOF

main63111-B5100i202112

main63111-B5110i202112

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-B5060i202112

63141JREINFORCEMENT, ROOF PANEL

main63141-B5080-B0i202112

-,TRIM1#

main63141-B5100i202112

63143AREINFORCEMENT, ROOF PANEL

main63141-B5090-B0i202112

-,TRIM1#

main63141-B5110i202112

9004119987

main90041-19987

9167180612

main91671-80612

8 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK PANEL for Toyota PIXIS VAN

This section contains 8 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota PIXIS VAN. Key components include: PROTECTOR, EDGE, PANEL SUB-ASSY, WINDSHIELD HEADER, PANEL, ROOF, FRAME, BACK DOOR OPENING, UPPER, REINFORCEMENT, ROOF PANEL.
