Toyota PIXIS VAN — ROOF PANEL & BACK PANEL

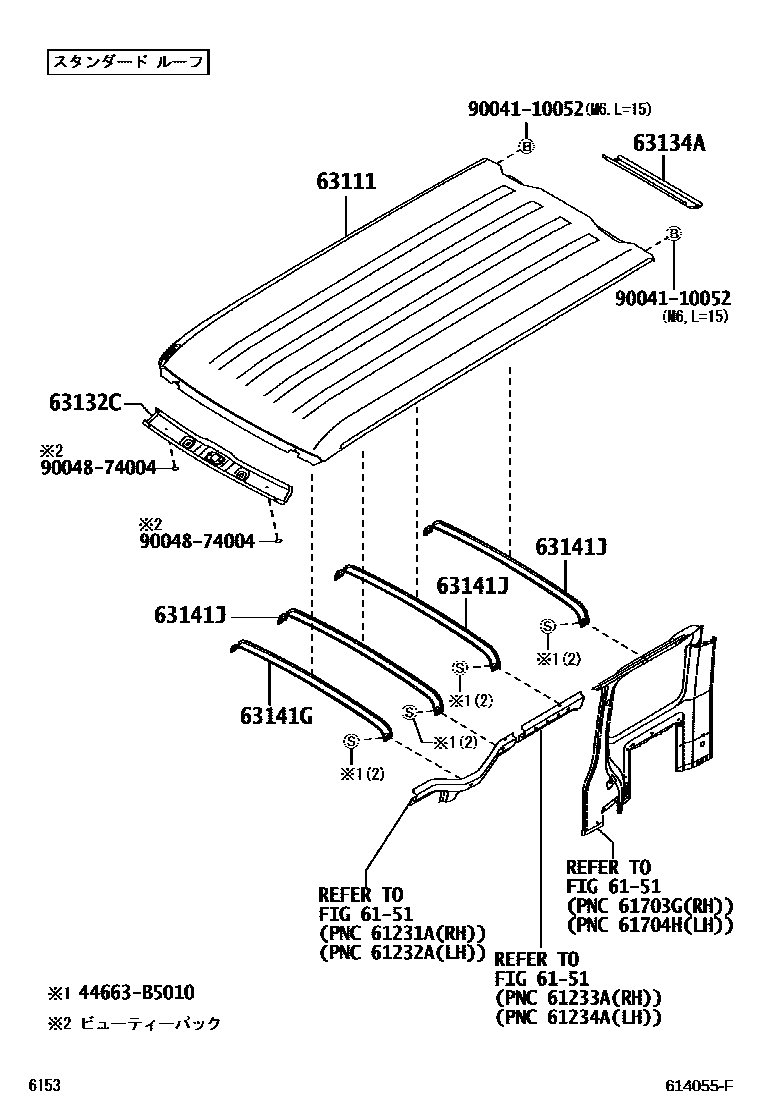

Parts diagram

6151SIDE MEMBER

→ Go to FIG 61-51

63111PANEL, ROOF

main63111-B5011i201504-201711

main63111-B5021i201112-201711

main63111-B5090i201711

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-B5020supersedes 63132-B5010i201112-201504

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-B5010i201112-201711

main63134-B5020i201112-201504

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-B5010supersedes 63141-B5030i201112-201504

main63141-B5010-B0i201504-201711

main63141-B5030i201711

main63141-B5050i201112-201504

main63141-B5050-B0i201504-201711

-,TRIM1#

63141JREINFORCEMENT, ROOF PANEL

main63141-B5020×3supersedes 63141-B5040i201112-201504

main63141-B5020-B0×3i201711

main63141-B5040×3i201711

main63141-B5060×3i201112-201504

main63141-B5060-B0×3i201711

-,TRIM2#

44663B5010KEY, VALVE STOPPER

main44663-B5010

9004110052

main90041-10052

9004874004

main90048-74004

9 parts on this diagram · 4 diagrams in section

ROOF PANEL & BACK PANEL for Toyota PIXIS VAN

This section contains 12 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota PIXIS VAN. Key components include: SIDE MEMBER, PANEL SUB-ASSY, WINDSHIELD HEADER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, FRAME, BACK DOOR OPENING, UPPER.
