Toyota PIXIS VAN — REAR DOOR WINDOW REGULATOR & HINGE

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-87504-B0×2i201112-201711

main69260-87504-C0×2i201711

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69267-87501-B0×2i201112-201711

main69267-87501-C0×2i201711

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-B5010supersedes 69830-B5021i201711

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-B5010supersedes 69840-B5021i201711

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-B5010×2i201711

9004179104

main90041-79104

91621F0614

main91621-F0614

7 parts on this diagram · 1 diagram in section

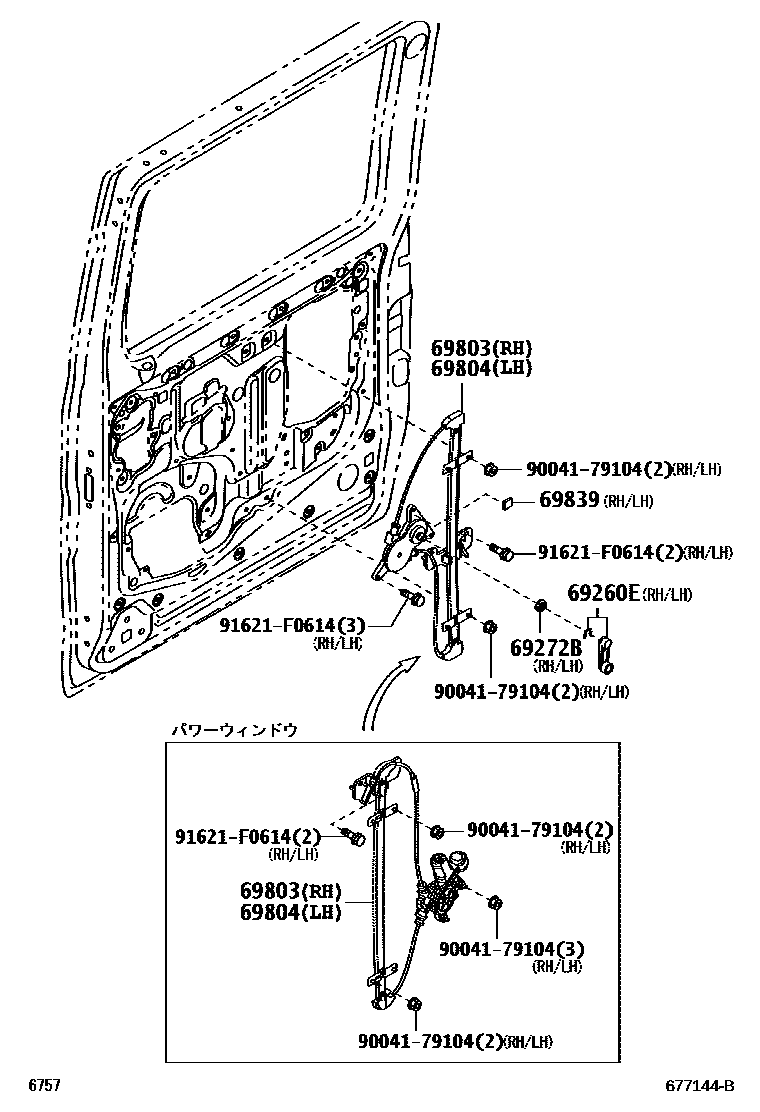

REAR DOOR WINDOW REGULATOR & HINGE for Toyota PIXIS VAN

This section contains 7 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota PIXIS VAN. Key components include: HANDLE ASSY, REAR DOOR WINDOW REGULATOR, PLATE, REAR DOOR REGULATOR INSIDE HANDLE, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH, PAD, REAR DOOR WINDOW REGULATOR.
